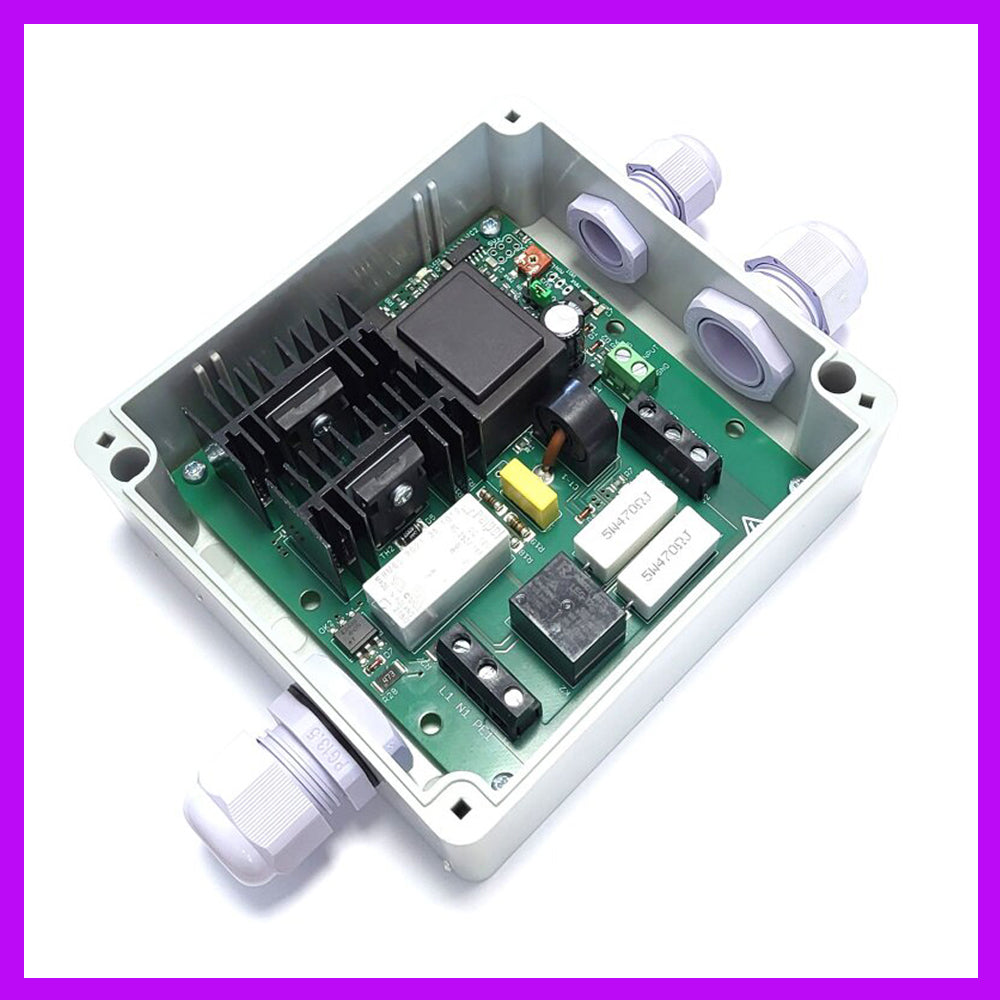

Current controller, power controller, speed controller with Shelly Dimmer 0-10V input in an IP65 housing

A microprocessor-controlled power controller for 230V loads with a maximum load capacity of 3.6kW.
The switch-on torque of the load is automatically detected by means of current measurement and the power adjustment is initiated directly. The power is continuously adjusted via a potentiometer or 0-10V PWM input, e.g. from the Shelly dimmer
This allows heating devices, fans, motors, vacuum cleaners, circular saws, drills, pumps, and other devices with a 230V power supply to be continuously regulated. Using the optional Shelly Dimmer 0-10V input, the controller can be conveniently controlled from a smartphone or smart home. Developed and manufactured in Germany.

Technical data:
- Input voltage 230V AC 50Hz (mains voltage with sine wave)
- Current consumption of the control approx. 1.5W
- Regulation via potentiometer or 0-10V PWM signal (PWM voltage generator integrated)
- Input/output 230V max. 16A- Electronic load detection (min. Load 30Watt)
- Automatic switch-on and switch-off
- Electronic overheating protection (> 85C switches the device off)
- Additional fuse (> 125C or 16A)
- LED display
- IP65 housing including 3x cable glands and seal (2x PG13.5, 1x PG9)
- Temperature range : -20. ..60C
- Dimensions of the housing : 125mm x 115mm x 59mm

Important notes:
Only suitable for devices that can handle phase cut. Not suitable for motors with start capacitors, energy-saving lamps, and fluorescent tubes.
*Important: For precise power adjustment (only for resistive loads) with burst control (full cycles), we recommend type ADK46.

Product information:
The Shellys shown and other items not expressly named in the item description are for illustrative purposes only and are NOT included in the scope of delivery.
Unless otherwise stated, the item price always refers to 1 piece, even if the product picture shows several devices are shown! Errors and changes excepted.
