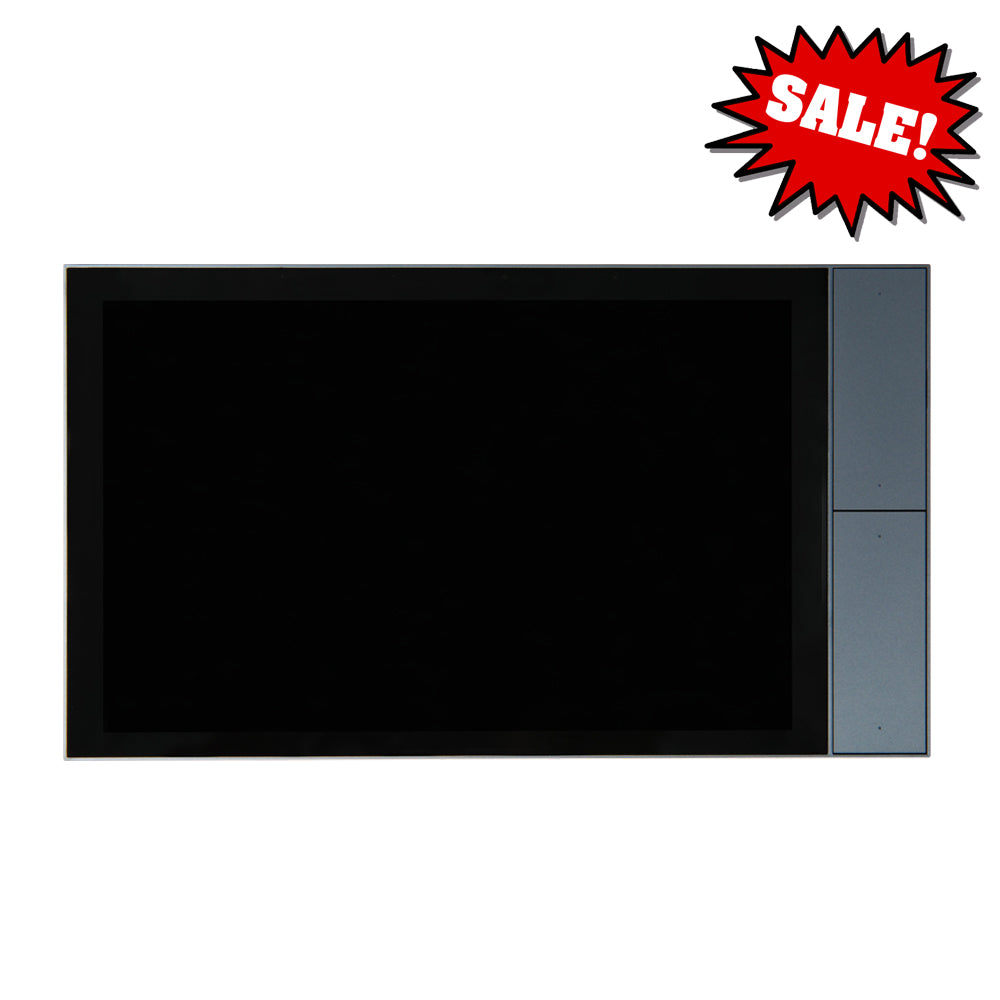

Shelly Wall Display XL
10.1" responsive HD color touchscreen display
Ultra-fast quad-core CPU for instant response
Home Assistant Integration
Wall-mount design compatible with EU standard switch boxes
Integrated dual 2W high-quality stereo speakers
Bluetooth and SONOS speakers support
Dual connectivity: Bluetooth 5.4 and Dual Band Wi-Fi 6 (2.4GHz & 5GHz)
Built-in relay controlling appliances up to 1500W
4 customizable buttons for quick actions & scenes
Built-in proximity & brightness (lux) sensors
Power monitoring function of connected Shelly PM devices
Fully customizable screen interface for device management
Integrated media player & internet radio support
Quantity |
Value |
|---|---|
Physical | |
Size (HxWxD): |
155,8x272,5x38,3 mm / 6.13x10.7x1.50 inch |
Weight: |
920 g / 32.45 oz |
Touch Screen: |
5-point capacity screen, G+FF touch |
Screen resolution: |
1280x752 px |
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
Conductor cross section: |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: |
15 mm / 0.24 to 0.59 in |
Mounting: |
Wall box |
Shell material: |
Metal stamping, PC with coating, glass |
Shell color: |
|
Speaker: |
2x 2 W (BOX sound cavity) |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
100 - 240 V~ 50/60Hz |
Power consumption: |
< 15 W |
USB TYPE-C power supply: |
5 V⎓ / 3 A |
Power Button: |
1 button for turning On/Off the screen |
Control Buttons: |
4 functional buttons for setting |
Output circuits ratings | |
Max. switching voltage: |
240 V~ |
Max. switching current: |
5 A |
Output (AC) |
100 - 240 V~ 50/60Hz |
Output (USB TYPE-C) |
5 V⎓ / 0.5 A |
Sensors, meters | |
Internal-temperature sensor: |
No |
Ambient temperature sensor: |
No |
Humidity sensor: |
No |
Light sensor: |
Yes |
Microphone: |
Yes (Four-microphone line array) |
G-sensor: |
No |
Proximity sensor: |
Yes (≤1 meter) |
Radio | |
Wi-Fi | |
Protocol: |
Wi-Fi 6 Dual Band |
RF band: |
2.4 & 5 GHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: |
5.4 |
RF band: |
2402 - 2480 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
Rockchip RK3566 Quad core Cortex-A55 |
RAM: |
2 GB |
Flash: |
16 GB |
System: |
Android 11 |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 5 URLs per hook… |
Scripting: |
No |
MQTT: |
Yes |
