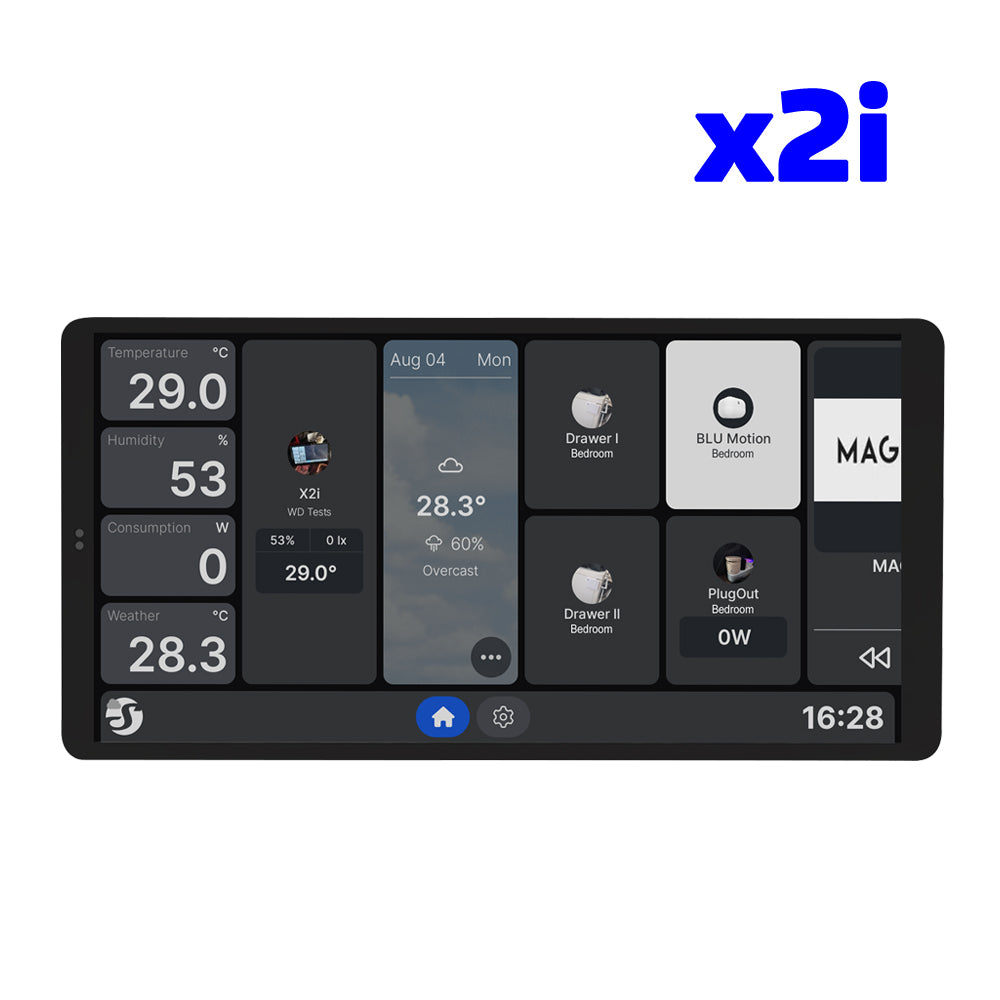

Shelly Wall Display x2i
Touch-sensitive 6.95” color display (panoramic or portrait view)
Bluetooth 5.0 and Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) connectivity
Ultra-fast quad-core CPU for instant response

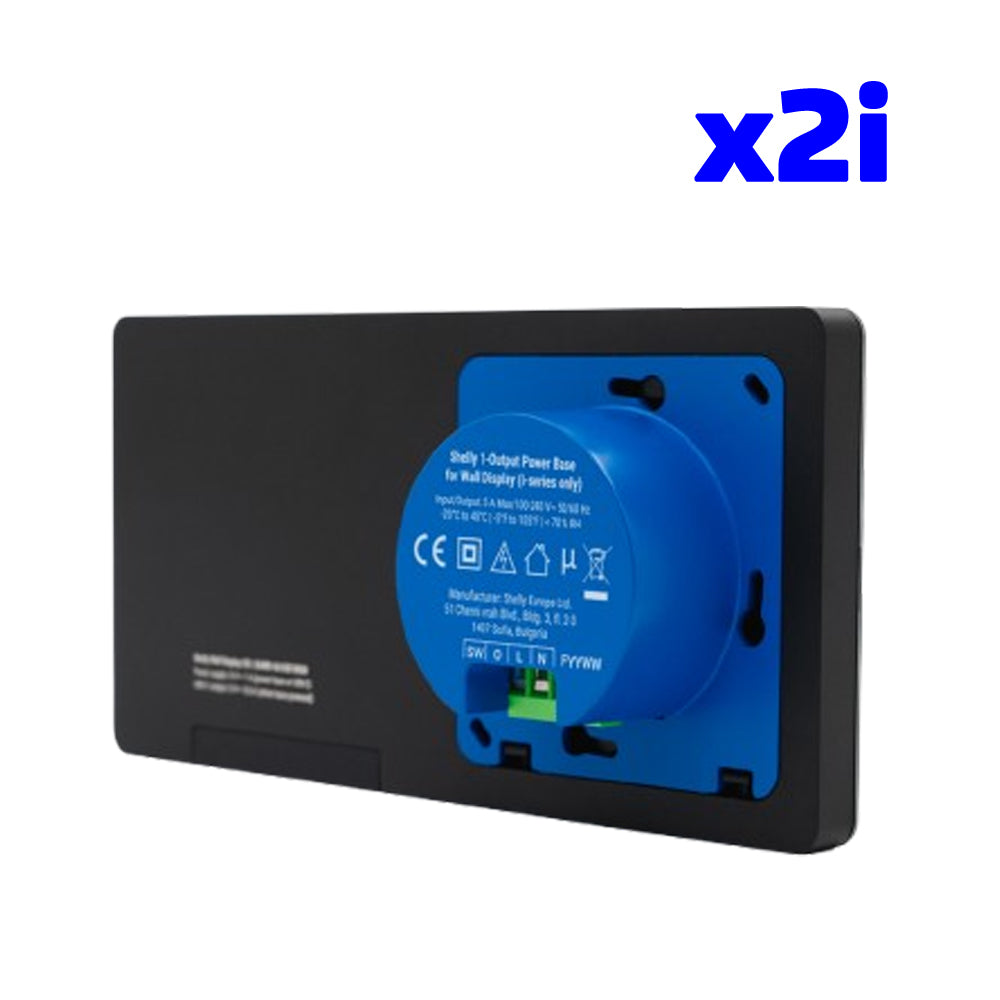

Interchangeable power base
Power monitoring for connected Shelly PM devices
Integrated 5 A relay for light control
Integrated 0.8 W speaker
Bluetooth and SONOS speakers support
Built-in LUX sensor, proximity sensor, and G-sensor (for gestures)
Supports both 100–240 V~ and USB-C (5 V⎓) power for flexible installation
Simple navigation and customizable home screen
Compatible with Shelly Smart Control App, and Home Assistant
Quantity |
Value |
|---|---|
Physical | |
Size (HxWxD): |
With power base: 87x178x36 mm / 3.43x7x1.42 inch Without power base: 87x178x11 / 3.43x7x0.43 inch |
Weight: |
With power base: 292 g / 10.3 oz Without power base: 246 g / 8.68 oz |
Touch Screen: |
5-point capacitive |
Screen resolution, px: |
1440x720p |
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
Conductor cross section: |
0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 inch |
Mounting: |
Wall box |
Shell material: |
Plastic, aluminum, glass |
Shell color: |
Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
Speaker: |
0.8W*1 |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
100-240 V~, 50/60Hz |
Power consumption: |
< 5 W |
USB TYPE-C power supply: |
5 V⎓, 1 A |
Output circuits ratings | |
Max. switching voltage: |
240 ~ |
Max. switching current: |
5 A |
USB TYPE-C, voltage: |
5 V⎓ |
USB TYPE-C, current: |
0.5 A |
Sensors, meters | |
Light sensor: |
Yes |
Microphone: |
Yes |
G-sensor: |
Yes |
Proximity sensor: |
Yes |
Radio | |
Wi-Fi | |
Protocol: |
Wi-Fi 6 Dual Band |
RF band: |
2.4 GHz, 5 GHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth - | |
Protocol: |
5.0 |
RF band: |
2402 - 2480 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
RAM: |
2 GB |
Flash: |
8 GB |
System: |
Android 11 |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 2 URLs per hook… |
Scripting: |
No |
MQTT: |
Yes |
