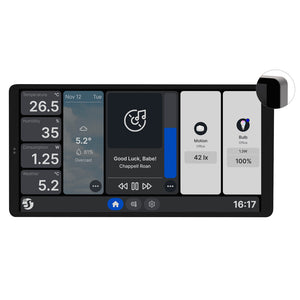

Shelly Wall Display x2
Wi-Fi and Bluetooth connectivity
Touch-sensitive 6.95” color display
Easy navigation and customizable home screen
Choice between panoramic and portrait view on the display
Integrated 5 A switch for appliance control
Integrated temperature, humidity, and light sensors
Power monitoring of all connected Shelly PM devices
Physical | |
Size (HxWxD): |
87x178x33 mm / 3.43x7x1.3 inch |
Weight: |
256 g / 9.03 oz |
Touch Screen: |
5-point capacity screen |
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
Conductor cross section: |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 inch |
Mounting: |
Wall box |
Shell material: |
Plastic, aluminum, glass |
Shell color: |
Black |
Speaker: |
0.8W*1 |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
230 VAC, 50/60Hz |
Power consumption: |
< 1 W |
USB TYPE-C power supply: |
5V⎓, 1A |
Output circuits ratings | |
Max. switching voltage: |
230 VAC |
Max. switching current: |
5 A |
Sensors, meters | |
Internal-temperature sensor: |
No |
Ambient temperature sensor: |
Yes |
Humidity sensor: |
Yes |
Light sensor: |
Yes |
Microphone: |
Yes |
G-sensor: |
Yes |
Proximity sensor: |
Yes |
Radio | |
Wi-Fi | |
Protocol: |
802.11 b/g/n |
RF band: |
2412 - 2472 МHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: |
5.0 |
RF band: |
2402 - 2480 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
SC7731E, Quad Core A7 1.3GHz |
RAM: |
1 GB |
Flash: |
4 GB |
System: |
Android 8.1 |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 2 URLs per hook… |
Scripting: |
No |
MQTT: |
Yes |
