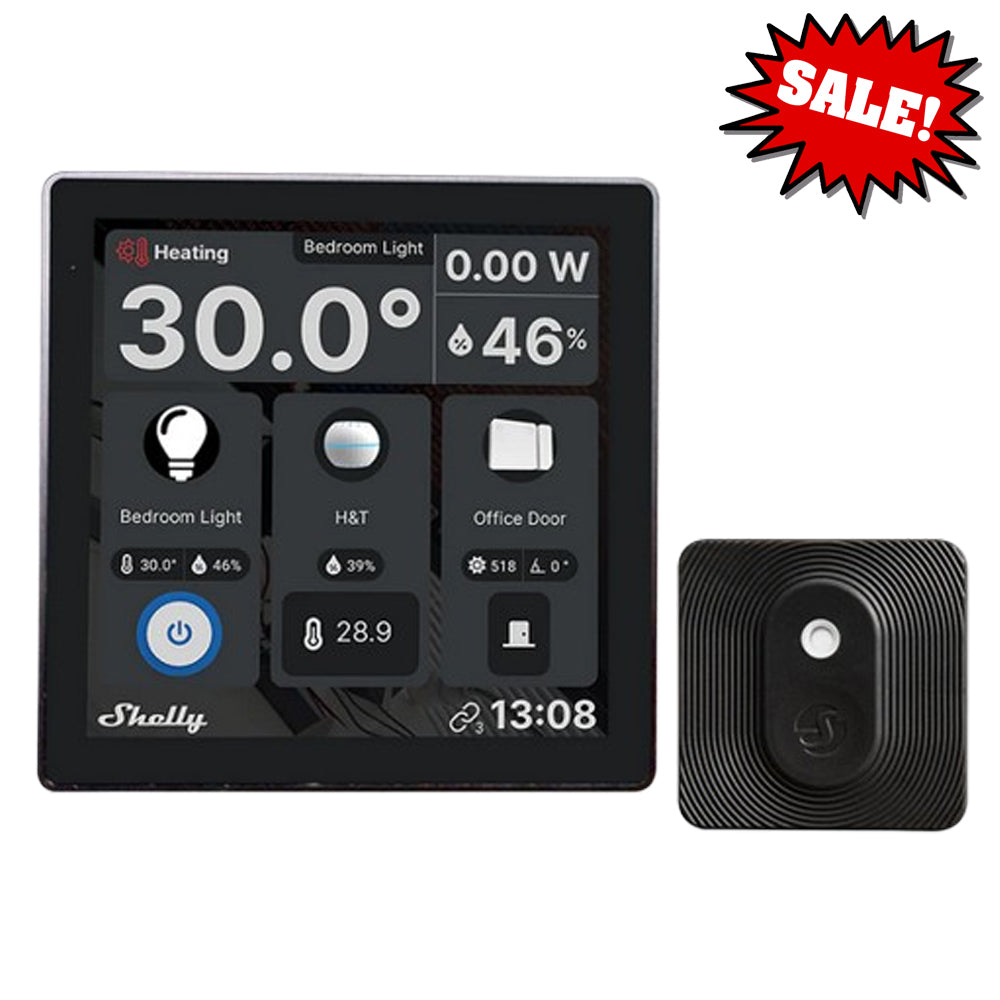

Shelly Wall Display with Shelly Blu H&T
A smart control panel with 5 A integrated switch and color display
Note:
Unfortunately, the internal temperature meter of the wall display is often not very accurate, as the electronics of the device itself produces waste heat.
This is why Shelly offers a bundle with the Shelly Blu H&T as an external temperature sensor, which can be connected directly to the wall display via Bluetooth.
Particularly interesting for using the wall display for heating control.
Shelly
Wall Display is an intuitive 4” wall display that gives you easy,
centralized control and monitoring of all your Shelly devices. With a
minimalistic look and customizable home screen, Shelly Wall Display will
perfectly fit into your interior and adjust to your needs. Replace your
ordinary light switch in 10 minutes and control all your Shelly devices
with just a tap.
- Integrated 5 A relay for appliance control; neutral required
- Embedded sensors for Temperature, Humidity & LUX
- Power consumption monitoring of all devices in your chosen room
- Can function as a room thermostat (coming soon)
- Easy navigation and customizable home screen and brightness
- Create scenes and schedules
| Physical | |
|---|---|
| Size (HxWxD): | 85x85x30mm / 3.35x3.35x1.18 in |
| Mounting: | Wall box |
| Shell material: | Plastic |
| Color: | Black / White |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 230 VAC, 50/60Hz |
| External protection: | 5 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | < 1.0 W |
| Output circuits ratings | |
| Max switching current AC: | 5A |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4,2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 2 URLs per hook |
| MQTT: | Yes |
| Scripting: | Yes |
