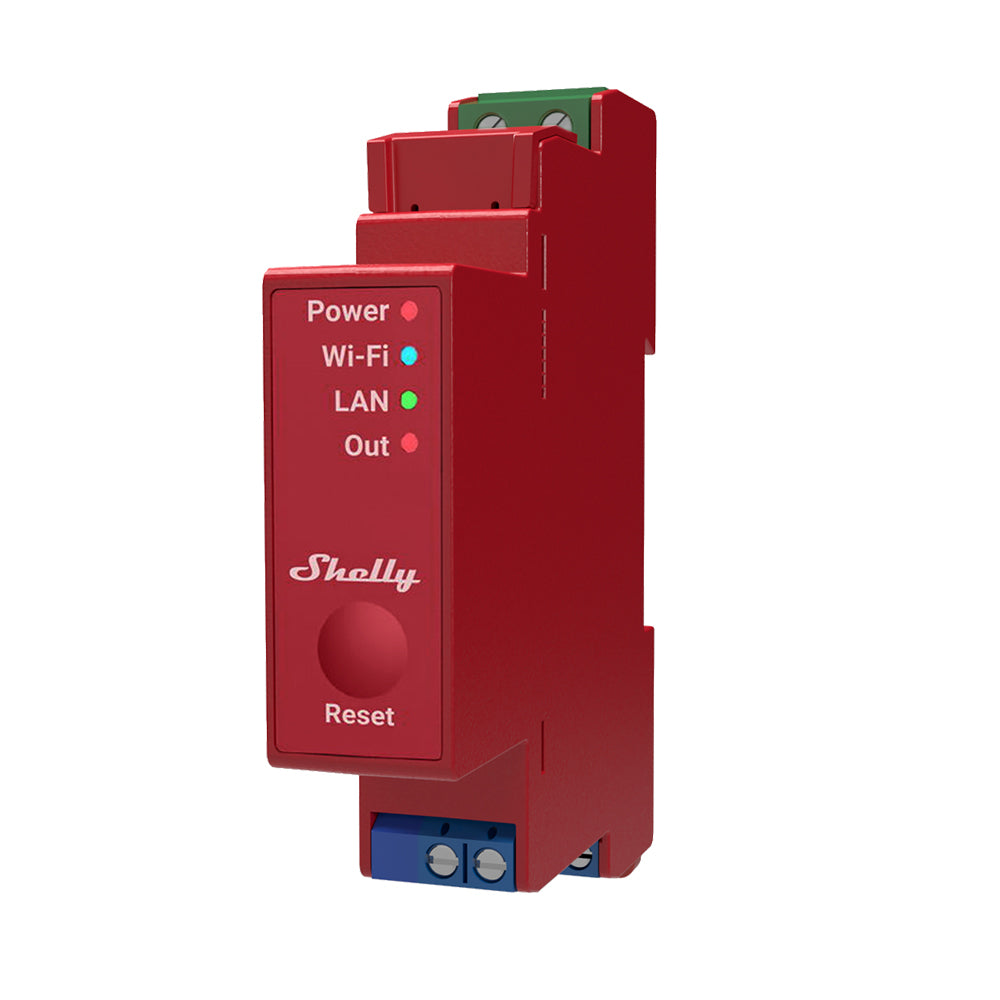

Shelly Pro 1PM

  • €67,98
    Unit price per
Tax included. Shipping calculated at checkout.


1 channel DIN rail relay switch with power metering and Wi-Fi, LAN and Bluetooth connection

Professional 1 channel relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control and precise power management. DIN rail mountable insde a breaker box. Enhanced safety features and compatible with most used home automation platforms.

Shelly Pro 1PM

  • LAN, Wi-Fi, and Bluetooth connection
  • 1 output, 16A
  • Power metering
  • DIN rail mountable

Specifications:
Power
Power supply AC 110-240V, 50/60Hz
Maximum load 16A
Channels 1 Channel
Special functions
Roller shutter mode No
Device temperature protection Yes
Overload protection Yes
Power measurement Yes
Features
HTTP/HTTPS webhooks Yes
Custom scripts (mJs) Yes
Operational temperature -20°C to + 40 °C
Device power consumption < 3 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
Connectivity
Wireless Yes
Max RF output power 13.34 dBm
Wi-Fi Protocol 802.11 b/g/n
Wi-Fi Radio frequency 2412 - 2483 MHz
Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Bluetooth Yes
Ethernet Yes
Dimensions
Size 18,5mm x 89,5mm x 68,5mm
The deviation from the device dimensions is up to 0.5 mm. The deviation from the package dimensions is up to 2 mm.

Warranty and Support:
Warranty inquiries and troubleshooting via the Shelly-Support-Ticketsystem
