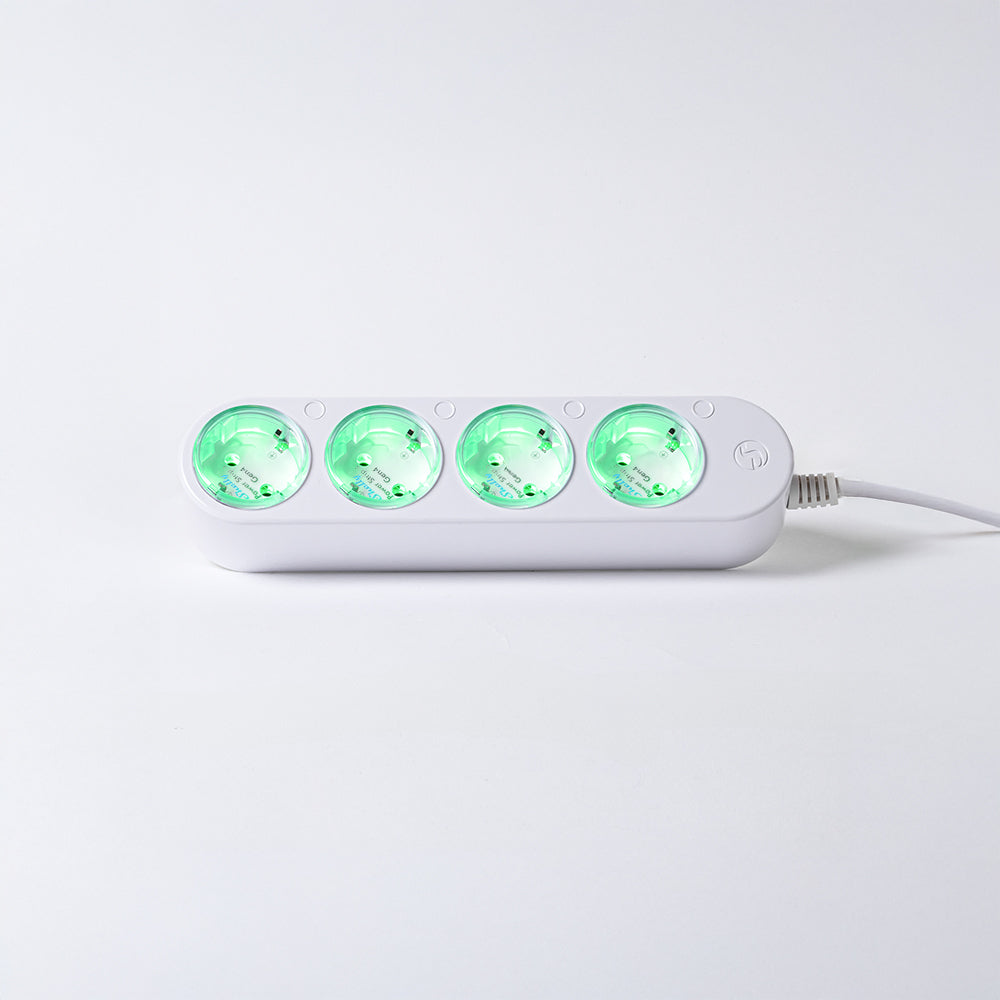

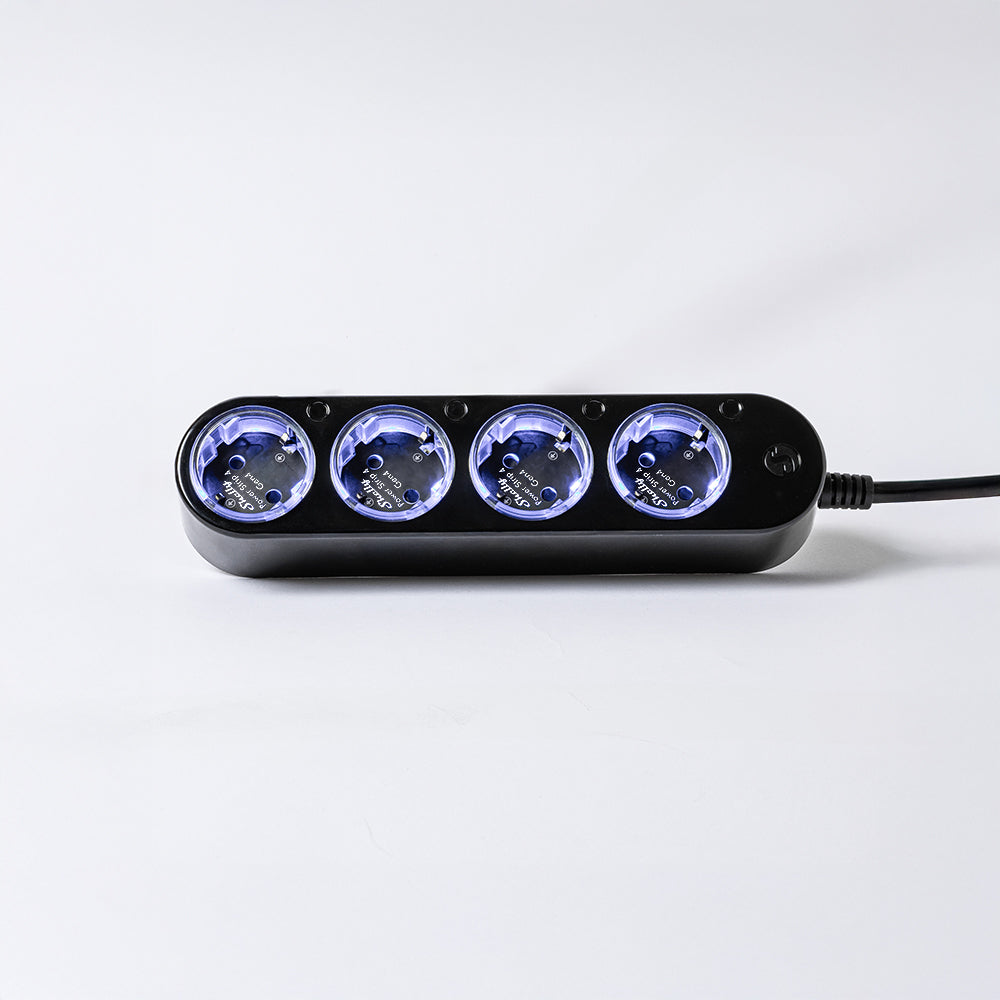

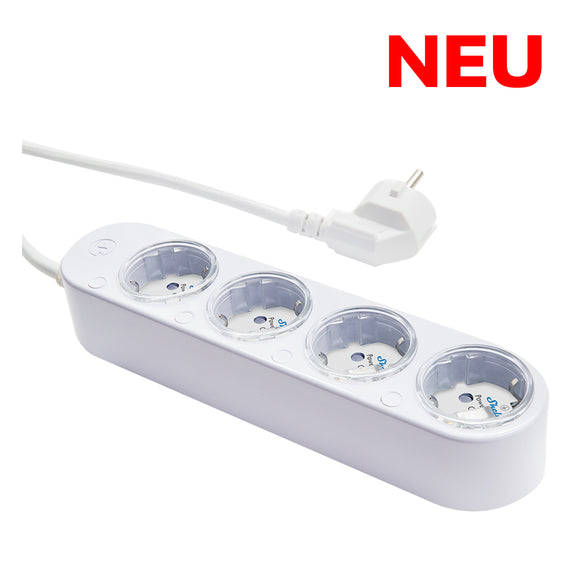

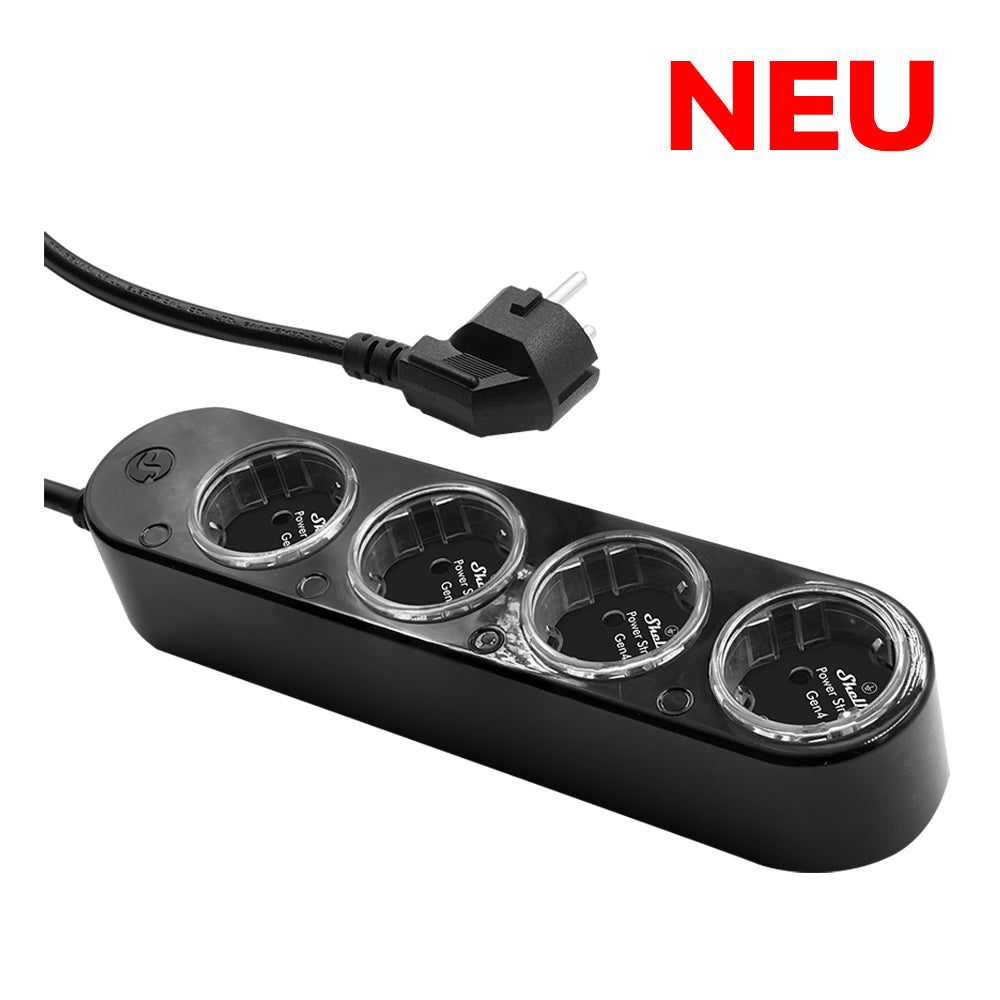

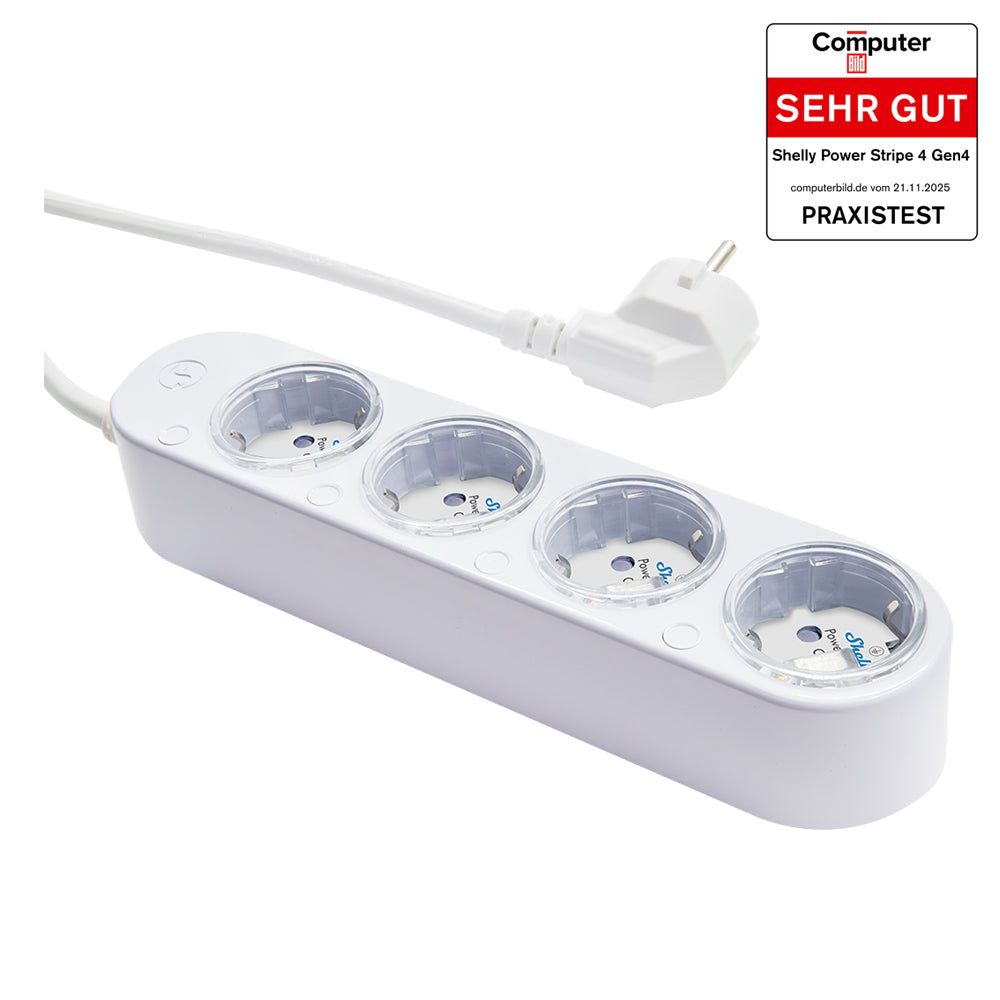

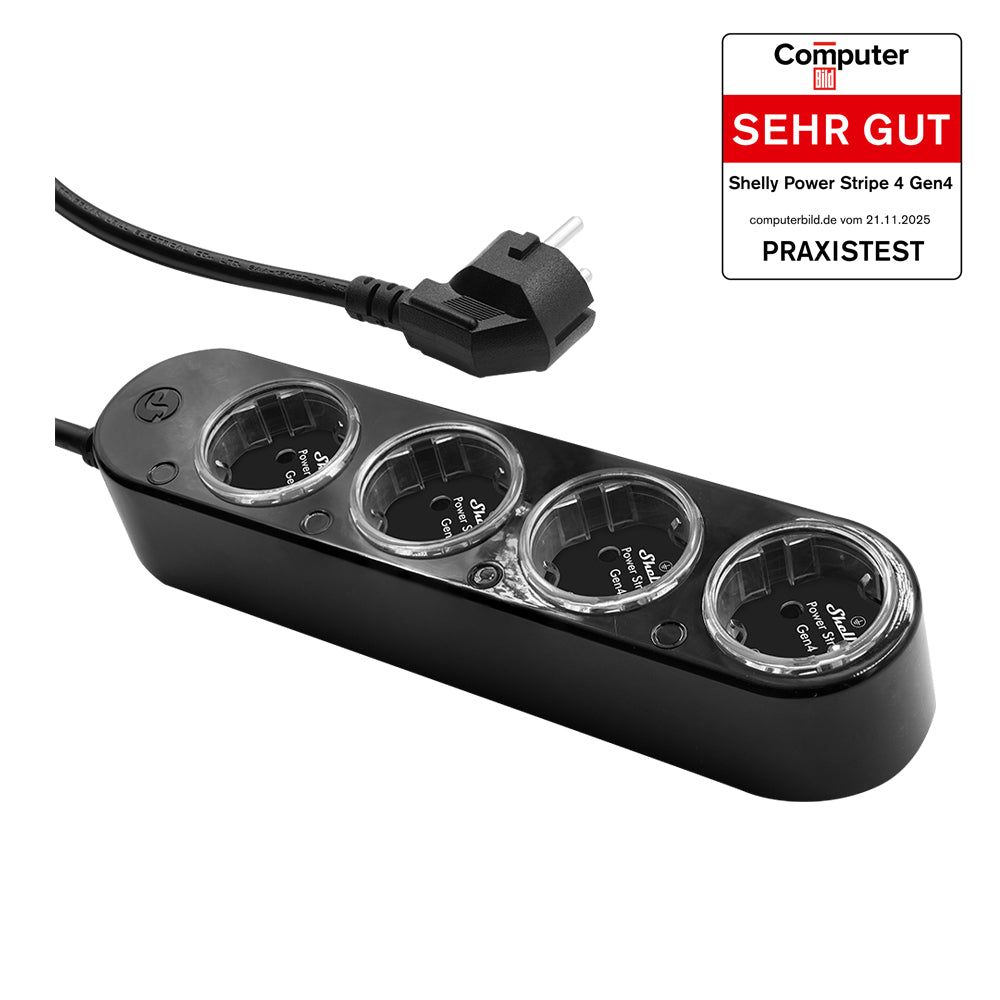

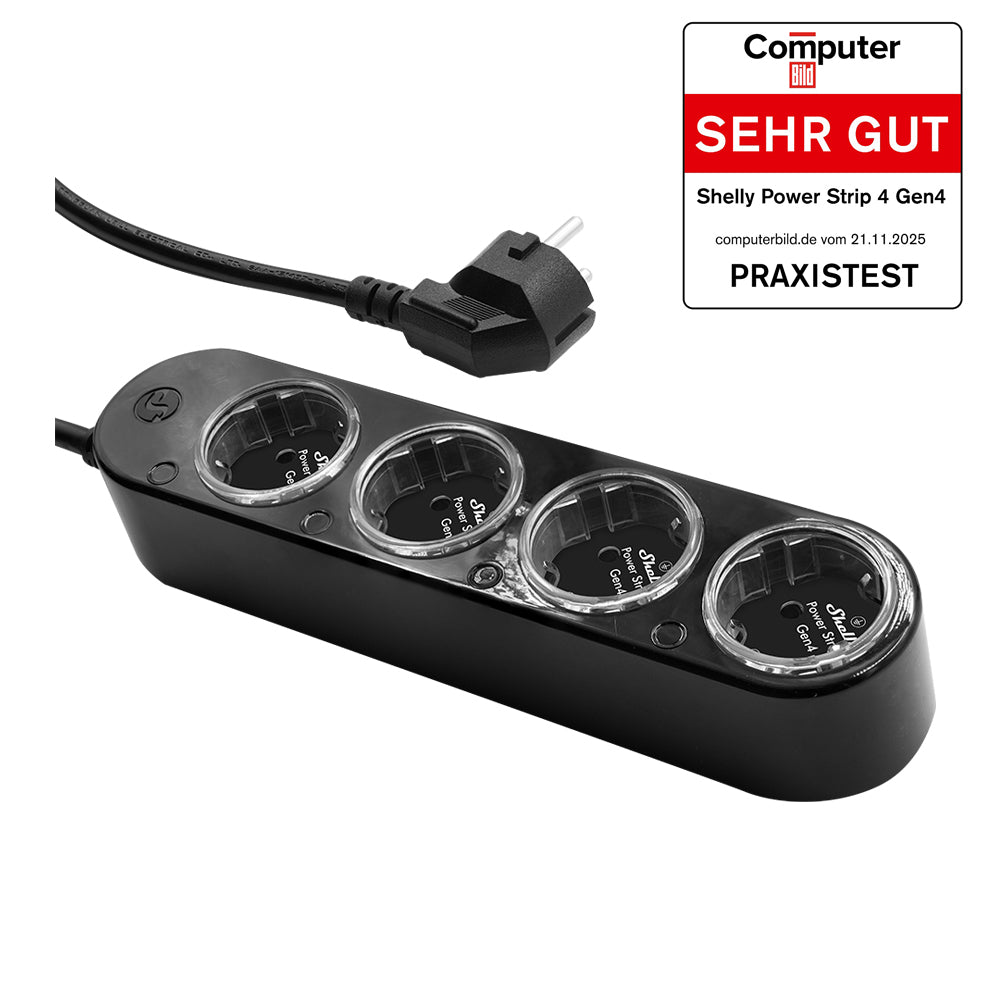

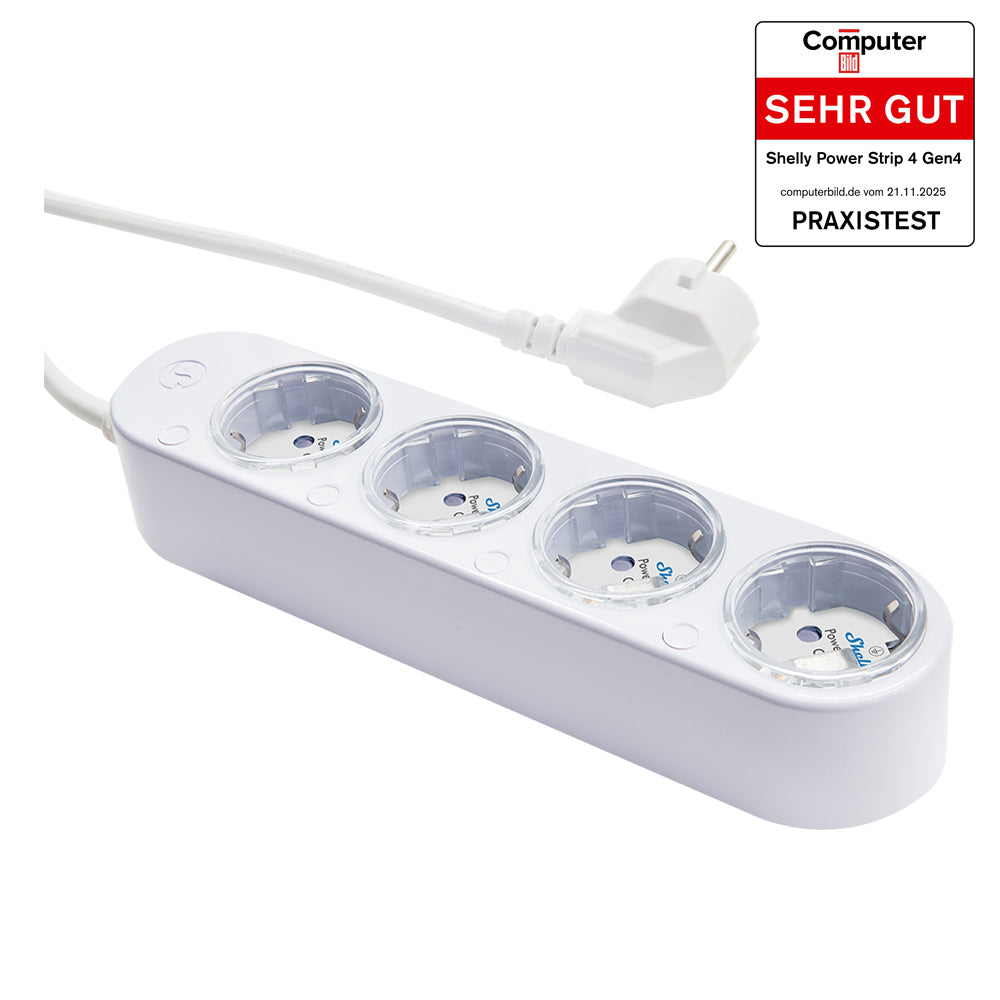

Shelly Power Strip 4 Gen4
Matter-certified, compact smart power strip with 4 individually controlled sockets, each featuring power metering and multicolor LED indication.
Easily control and monitor lighting, heating, or other connected appliances from anywhere.
Key Features
Supports up to 12 A per socket (16 A in total)
Type F / Schuko sockets
Matter-certified: Connect devices from different brands in seconds.
Apple HomeKit support: Control connected devices using Apple Home app or Siri
Power metering on each socket

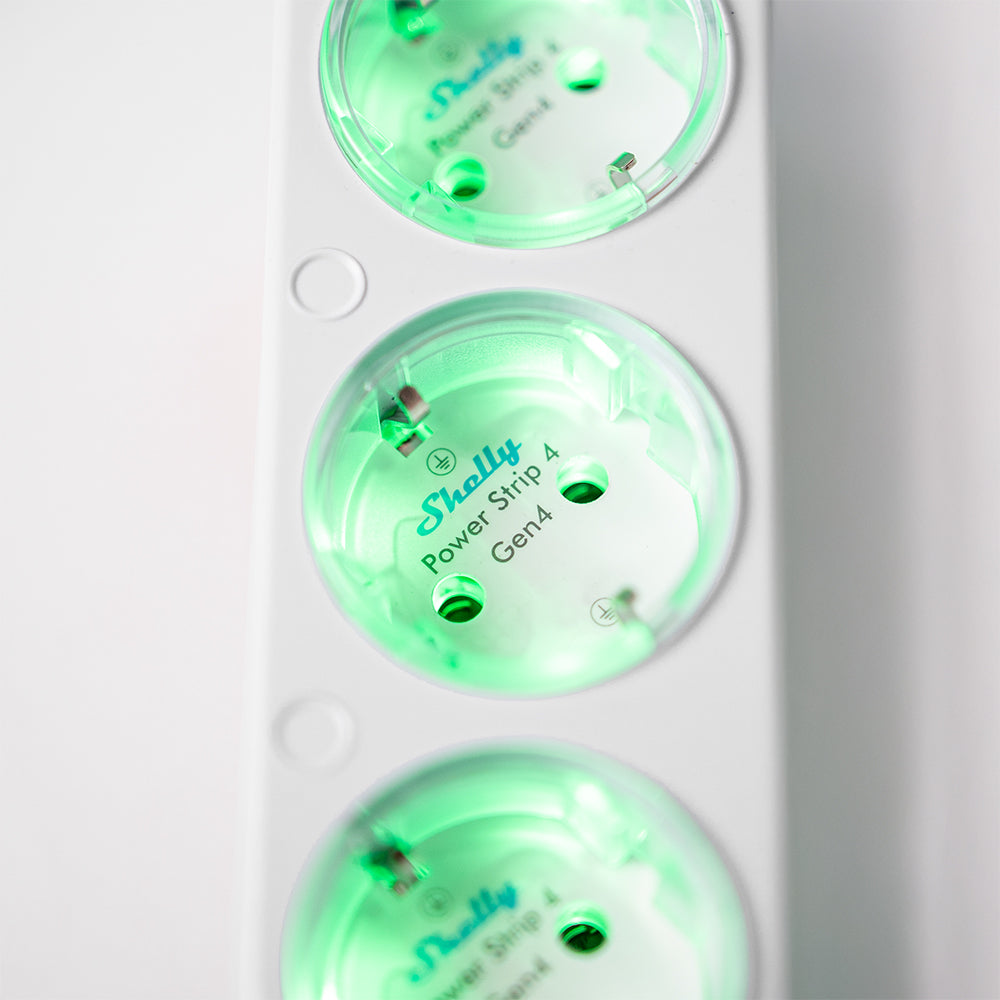

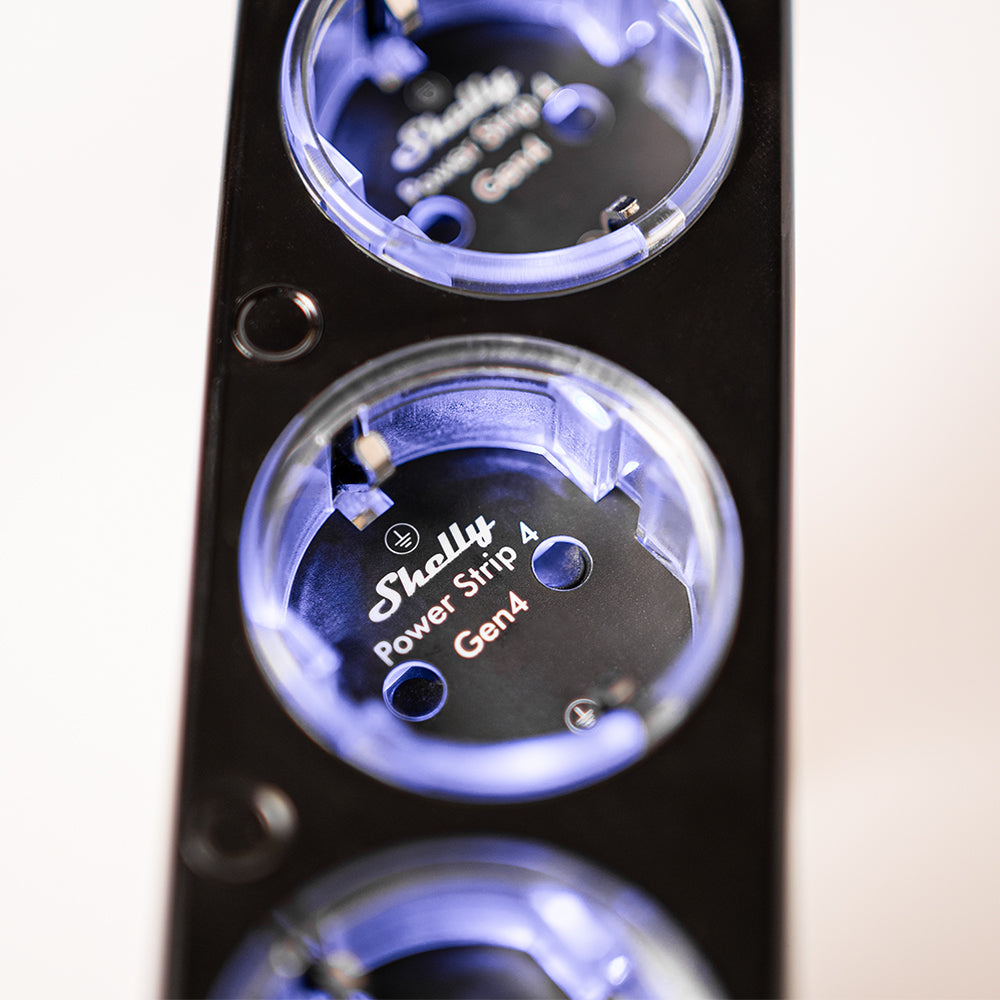

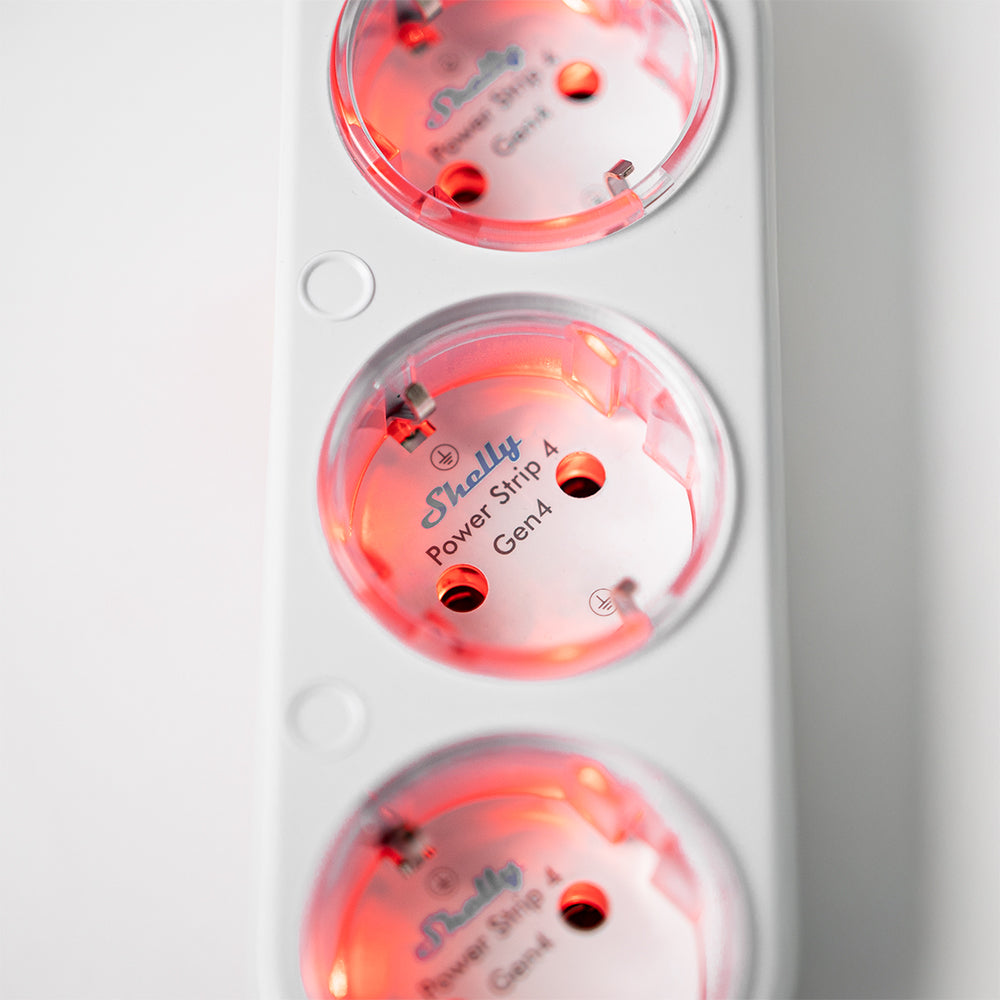

Multicolor LED indicator (supports Night mode)
Flash memory: 8 MB and Shelly Chip - ESP-Shelly-C68F
Scripting
Supports schedules, scenes, and local actions
Lightweight, compact design
150 cm power cable for flexible placement

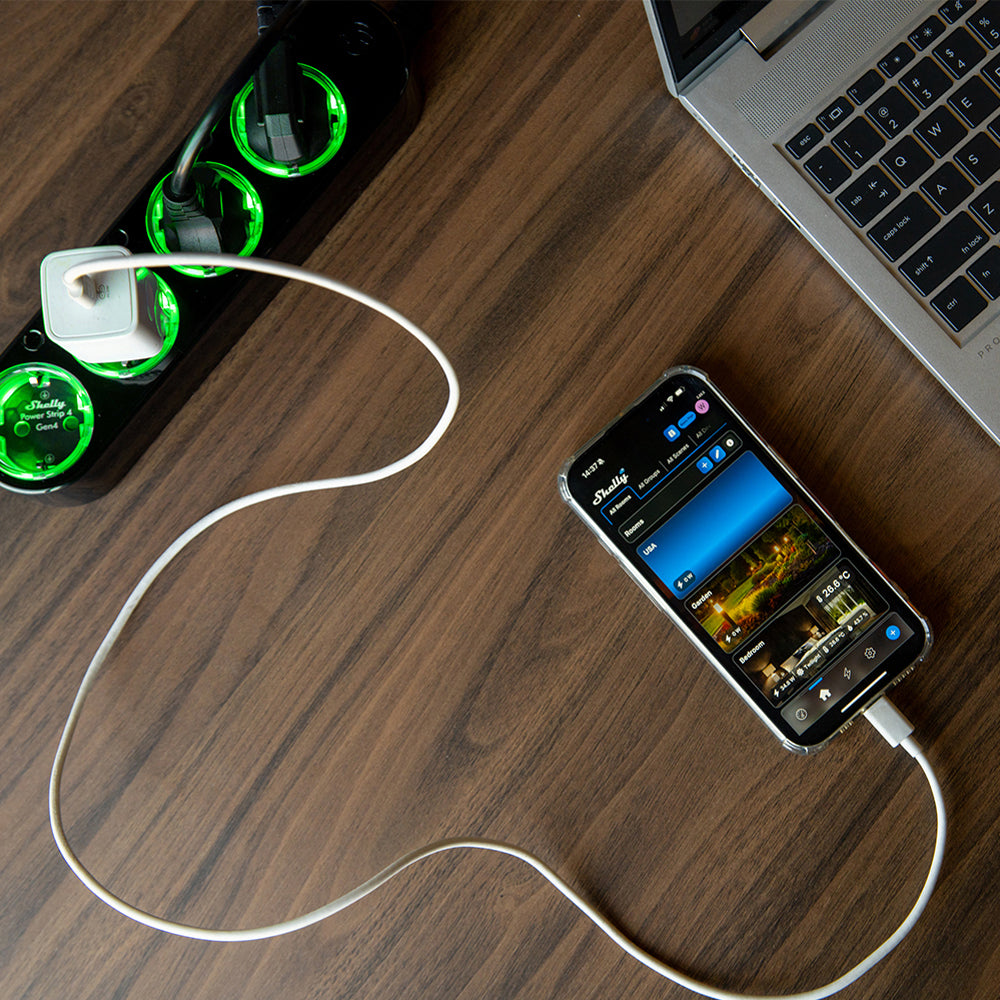

Wide compatibility with home automation systems and apps, including the Shelly Smart Control app.
Specification
Quantity |
Value |
|---|---|
Physical | |
Size (HxWxD): |
43x237x56 mm / 1.69x9.33x2.20 inch |
Weight: |
560g / 19.75oz |
Compatible sockets: |
CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E) |
Compatible plugs: |
CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17 |
Shell material: |
Plastic |
Shell color: |
|
Cable color: |
|
Power Cord Lenght: |
1,5m H05VV-F 3G1,5mm² |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
220 - 240 V~ 50/60 Hz |
Power consumption: |
< 1 W |
Output circuits ratings | |
Max. switching voltage: |
240 VAC |
Rated output current: |
16 A total between all 4 sockets |
Max. switching current: |
12 A per individual socket |
Max. output power: |
3500 W |
Number of switching cycles: |
10000 |
Overvoltage category: |
II |
Duty-type: |
S1 |
Switch type: |
One-way |
Switch configuration: |
SPNO (single-pole, normally-open) |
Type of circuit disconnection: |
Micro (µ) |
Sensors, meters | |
Voltmeter (AC): |
Yes |
Ammeter (AC): |
Yes |
Power and energy meters: |
Yes |
Internal-temperature sensor: |
Yes |
Radio | |
Wi-Fi | |
Protocol: |
802.11 b/g/n/ax |
RF band: |
2412 - 2472 МHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: |
5.0 |
RF band: |
2402 - 2480 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Zigbee | |
Protocol: |
802.15.4 |
Zigbee repeater: |
Yes |
RF bands: |
2400 to 2483.5 MHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors |
Microcontroller unit | |
CPU: |
ESP-Shelly-C68F |
Flash: |
8 MB |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 5 URLs per hook |
Scripting: |
Yes |
MQTT: |
Yes |
CoAP: |
No |
