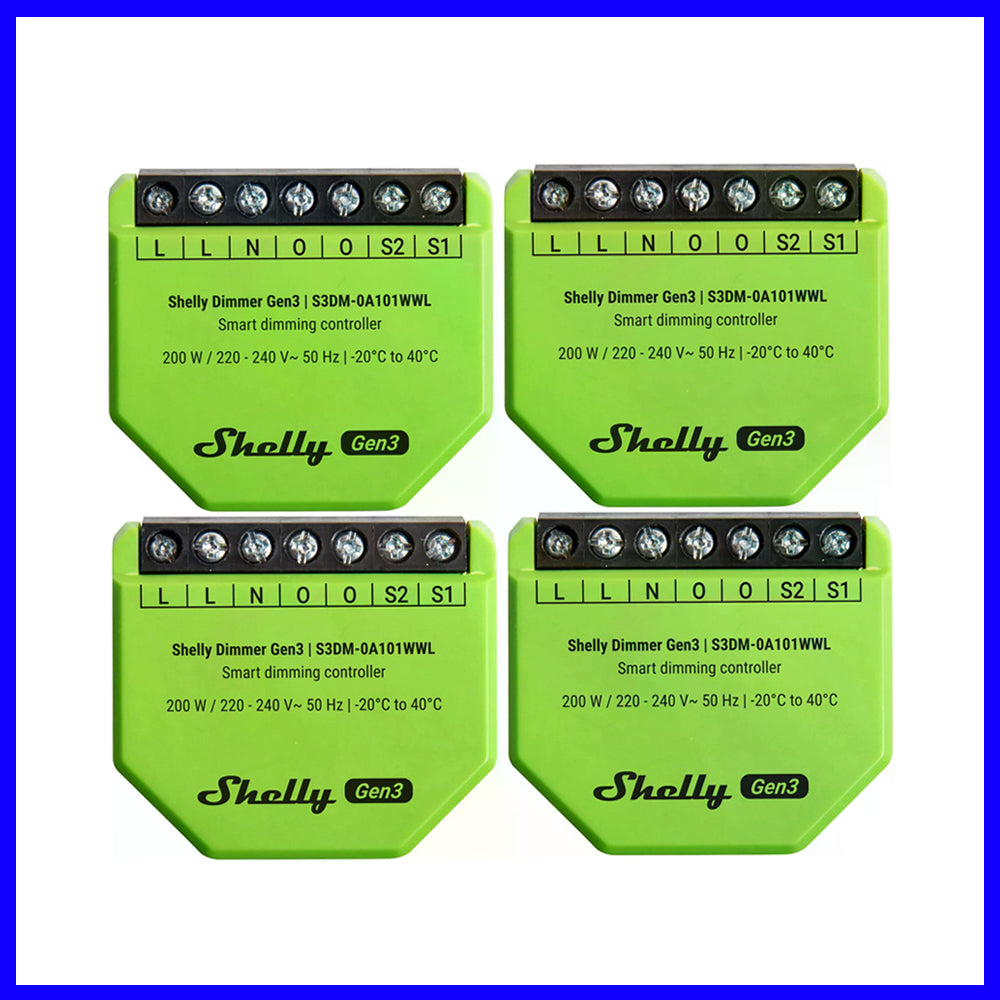

Shelly Dimmer Gen3
Shelly Dimmer Gen3
*Bypass is required when the device is used without neutral and the load is under 20 W.
Wi-Fi operated Bluetooth inclusion, or use it as a Bluetooth gateway.
No need for neutral: Can be used without a neutral wire. Bypass is required when the device is used without neutral and the load is under 20 W.
Supported light types: Dimmable LED lamps: up to 150 W Incandescent bulbs: up to 200 W Halogen lamps: up to 200 W Iron-core transformer with low-voltage incandescent lamps: up to 200 VA Dimmable electronic transformers: up to 200 W
Overload and temperature protection
Equipped with a new processor & increased flash memory - ESP Shelly
Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
Quantity |
Value |
|---|---|
Physical | |
Size (HxWxD): |
38x42.5x16.5 mm / 1.50x1.67x0.65 inch |
Weight: |
24.3 g / 0.86 oz |
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
Conductor cross section: |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: |
5 to 6 mm / 0.20 to 0.24 in |
Mounting: |
In-wall |
Shell material: |
Plastic |
Shell color: |
Shell: Lime (… color code …) Print: Black |
Connector color: |
Black |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
220-240 V~ 50 Hz |
Power consumption: |
< 1.5 W |
Neutral not needed: |
Yes |
Min. load without neutral and without a Bypass: |
20 W |
Dimming type |
Trailing edge |
External protection: |
16 A, tripping characteristic B or C, |
Short circuit protection |
Yes |
Output circuits ratings | |
Max. output power: |
200 W |
Sensors, meters* | |
Voltmeter range (AC): |
180 V - 240 V |
Voltmeter accuracy: |
± 5 % (when used with neutral) |
Ammeter range (AC) |
0 A - 3 A, |
Ammeter accuracy: |
± 5 % (when used with neutral) |
Internal-temperature sensor: |
Yes |
*Precise measurement is possible only when used with neutral. | |
Radio | |
Wi-Fi | |
Protocol: |
802.11 b/g/n |
RF band: |
2412 - 2472 МHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: |
4.2 |
RF band: |
2402 - 2480 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
ESP32 C3 STM32 G051 |
Clock frequency: |
ESP32 C3: 40 Mhz |
Flash: |
8 MB |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 5 URLs per hook… |
Scripting: |
Yes |
MQTT: |
Yes |
Advanced schedules: |
Yes |
KVS (Key-Value Store): |
Yes |
