Shelly Dimmer 2
WiFi-operated dimmer

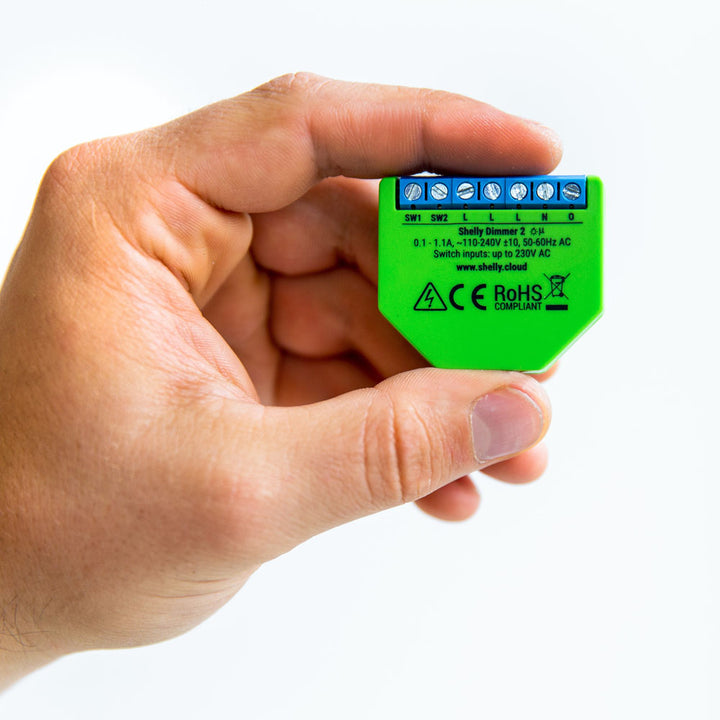

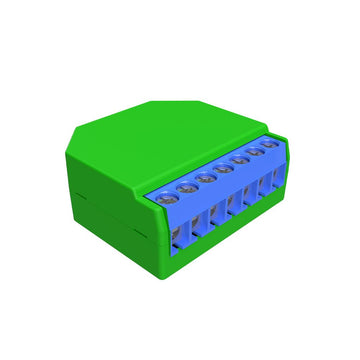

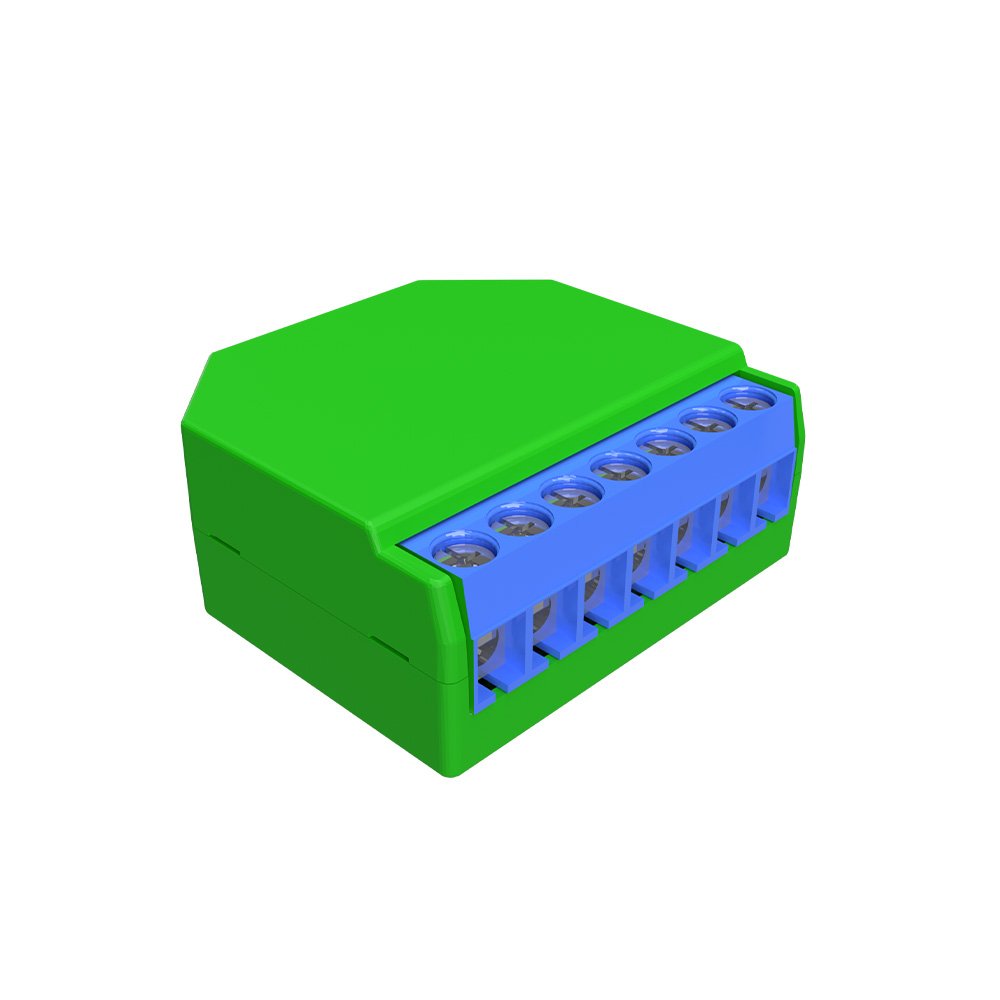

Control a wide range of dimmable LED, halogen lights and ferromagnetic/triac transformers with the smallest WiFi-operated dimmer in the world, Shelly Dimmer2 - working without a neutral line.
Shelly Dimmer2
- Has an embedded webserver and connects to your Wi-Fi network

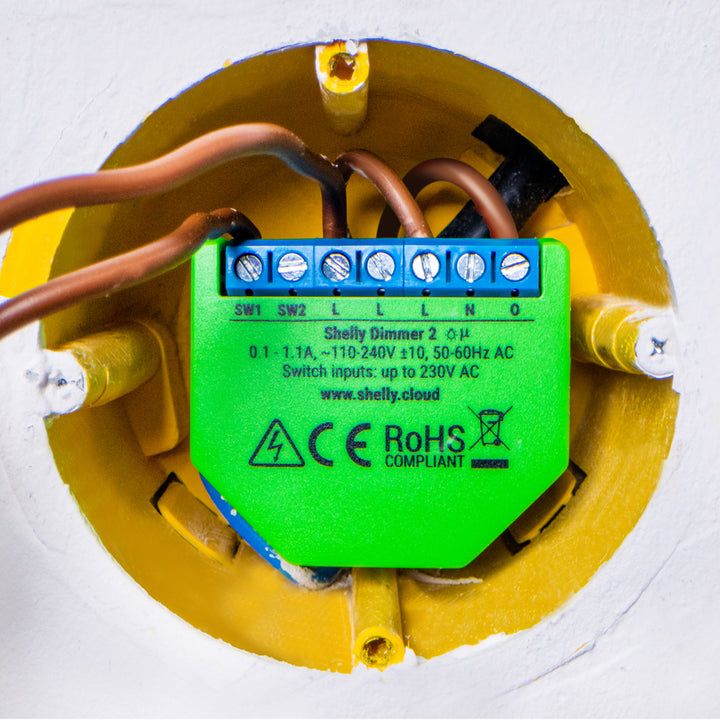

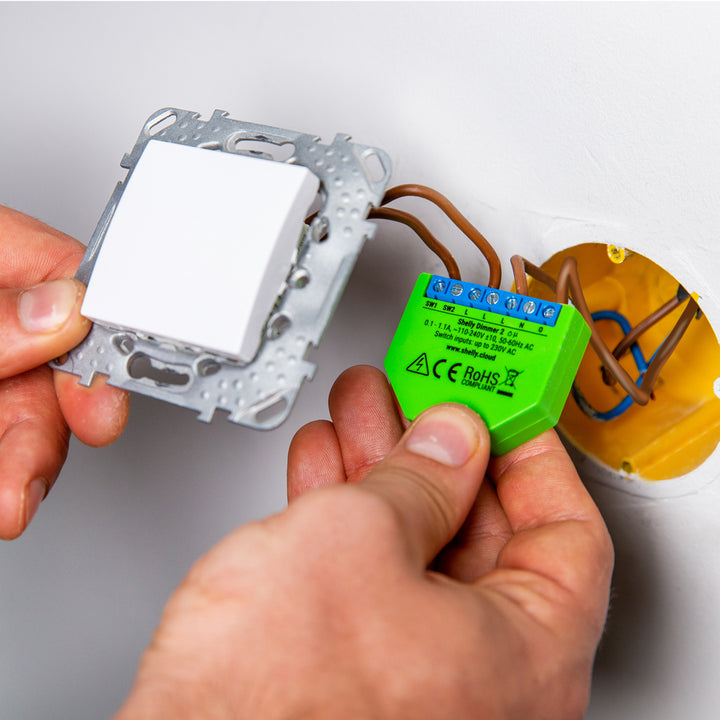

- Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- Can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system's component
- Overload and temperature protection
- For multiple bulbs connected to one Dimmer2, all bulbs need to be equal in power load and technology
- Easy control through the Shelly app, various protocols and platforms, as well as voice assistants.
| Power | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Channels | 1 Channel |
| Special functions | |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| Dimming | Yes |
| Dimmable LED | 50-200VA / 10W – 200W |
| Incandescent and halogen light sources | 10-220W |
| Working without a neutral line | Yes |
| Features | |
| Colour changing | No |
| Predefined effects | Yes |
| Operational temperature | 0°C to + 35 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| Connectivity | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Dimensions | |
| Size | 42mm x 36mm x 14 mm |
The deviation from the device dimensions is up to 0.5 mm. The deviation from the package dimensions is up to 2 mm.
Warranty and Support:
Warranty inquiries and troubleshooting via the Shelly-Support-Ticketsystem
