Shelly BLU Motion ZB
Key Features
Dual Connectivity: Zigbee 3.0 (via hubs) and Bluetooth (via BTHome)
PIR motion detection with adjustable sensitivity for reliable movement detection
Beacon mode with continuous status updates every 30 seconds
Battery included with up to 5 years of life (CR2477)
Built-in LUX sensor with configurable brightness levels (dark, twilight, bright)
Configurable LED indication for optional visual feedback
BTHome support for integration with Shelly and compatible platforms

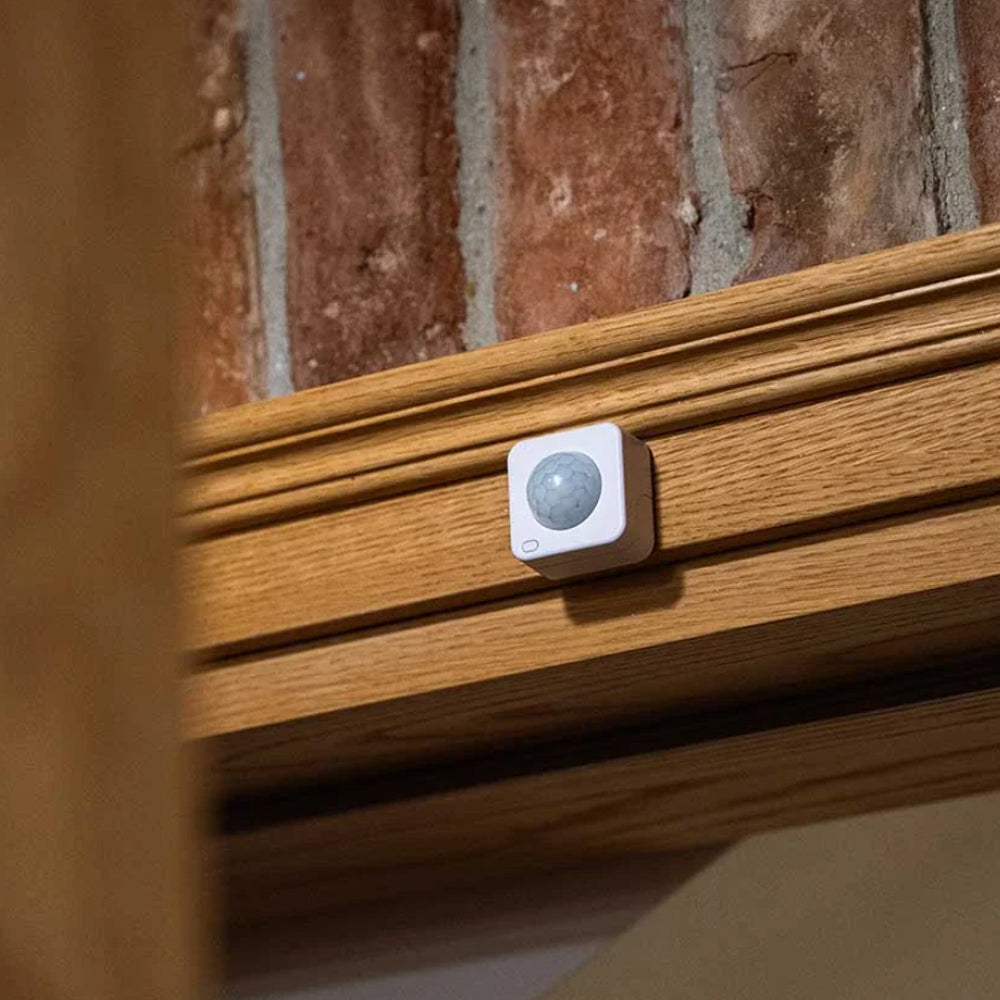

Wire-free installation with double-sided adhesive for easy wall or ceiling placement
AES encryption (CCM mode) for secure communication
Compatible with Shelly Plus, Pro, and Gen3/Gen4 devices, Zigbee 3.0 hubs, and platforms like Home Assistant, and Shelly Smart Control app
Specifications
Type |
Value |
|---|---|
Physical | |
Size (HxWxD): |
28x37x37 mm / 1.10x1.46x1.46 inch |
Weight: |
28 g / 1.02 oz |
Shell material: |
Plastic |
Color: |
White |
Environmental | |
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Electrical | |
Power supply: |
1x 3 V CR2477 battery (included) |
Battery life: |
5 years |
Sensors | |
PIR |
Yes |
Light sensor |
Yes |
Bluetooth | |
Protocol: |
5 (LE) |
RF band: |
2400 - 2483.5 MHz |
Max. RF power: |
<8 dBm |
Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Zigbee | |
Protocol: |
802.15.4 |
RF band: |
2405 to 2480 MHz |
Max. RF power: |
< 8 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
MCU | |
CPU: |
EFR32MG27 |
Flash: |
768 kB |
Firmware capabilities | |
Encryption: |
AES encryption (CCM mode) |
Beacon mode: |
Yes |
Other | |
Supported Devices |
|
