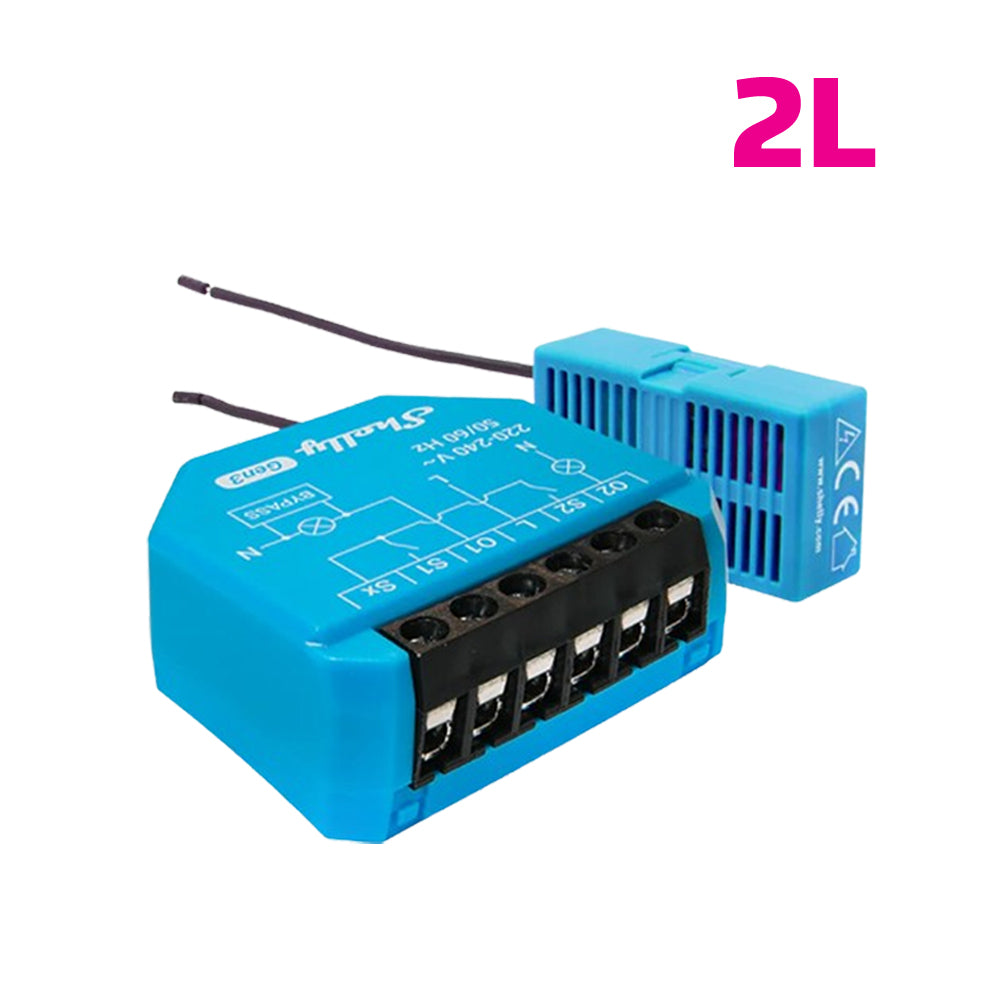

Shelly 2L Gen3
Shelly 2L Gen3 is a two-channel smart switch tailored for precise lighting control in No-Neutral-Wire installations.

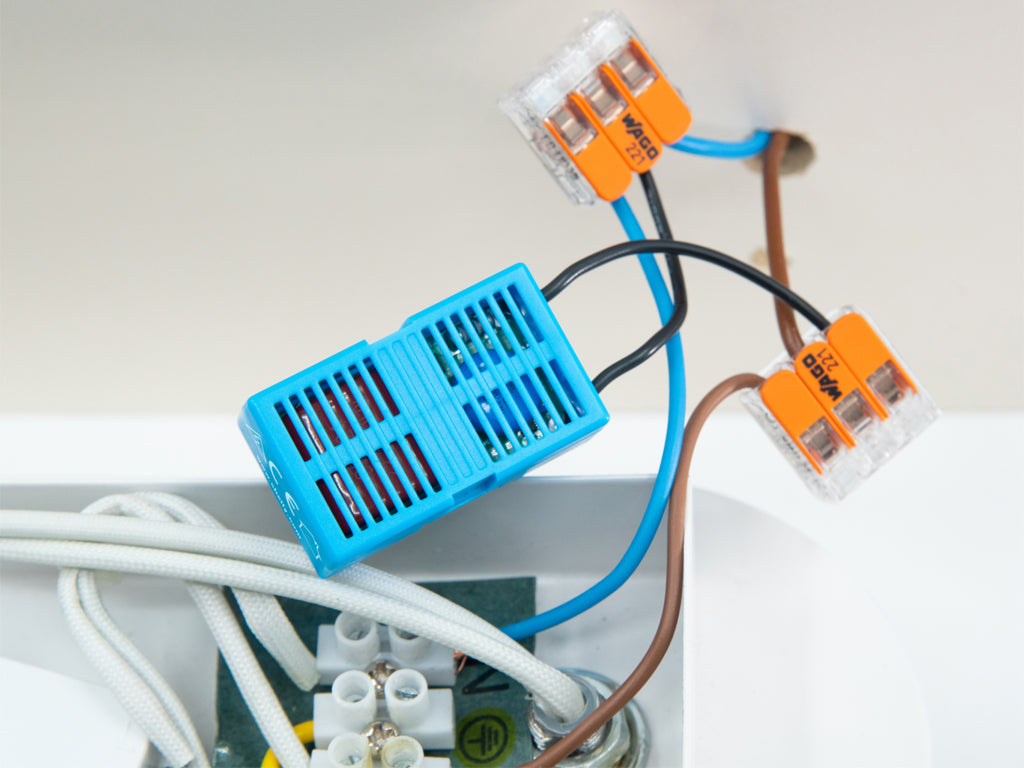

By simply adding a Shelly Bypass for 1L/2L* in parallel to the load on Output 1, you can transform your lighting setup with ease!
*Shelly Bypass for 1L/2L is included in the pack
Key Features
Bluetooth, Wi-Fi
2-channel switch: supports appliances up to 200 W on output terminal 1, and up to 700 W on output terminal 2
No Neutral wire required
No minimum load required with Shelly Bypass for 1L/2L*
Supports schedules, scenes and local actions
Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
Internal temperature sensor for overheating protection
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
Wi-Fi range extender & Bluetooth gateway
Specifications
Quantity |
Value |
---|---|
Physical | |
Size (HxWxD): |
37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
Weight: |
28 g / 1 oz |
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
Conductor cross section: |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.24 in |
Mounting: |
In-wall |
Shell material: |
Plastic |
Shell color: |
Cyan |
Terminal color: |
Black |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Storage temperature: |
10°C to 40 °C |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
220-240 V~, 50Hz (Shelly Bypass is required for the load at O1) |
Shelly Bypass included |
Yes |
Power consumption: |
< 1.2 W |
Neutral not needed: |
Yes (Shelly Bypass is required for the load at O1) |
Min. load without neutral and without a Bypass: |
No (Shelly Bypass for 1L/2L is required for the load at O1), for all LED lights. |
Output circuits ratings | |
Max. switching voltage: |
240 V~ |
Max. switching power: |
|
Sensors, meters | |
Internal-temperature sensor: |
Yes |
Radio | |
Wi-Fi | |
Protocol: |
802.11 b/g/n |
RF band: |
2401 - 2495 МHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: |
4.2 |
RF band: |
2400 - 2483.5 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
ESP-Shelly-C38F |
Clock frequency: |
160 Mhz |
RAM: |
512 KB |
Flash: |
8 MB |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 5 URLs per hook |
Scripting: |
Yes |
MQTT: |
Yes |
