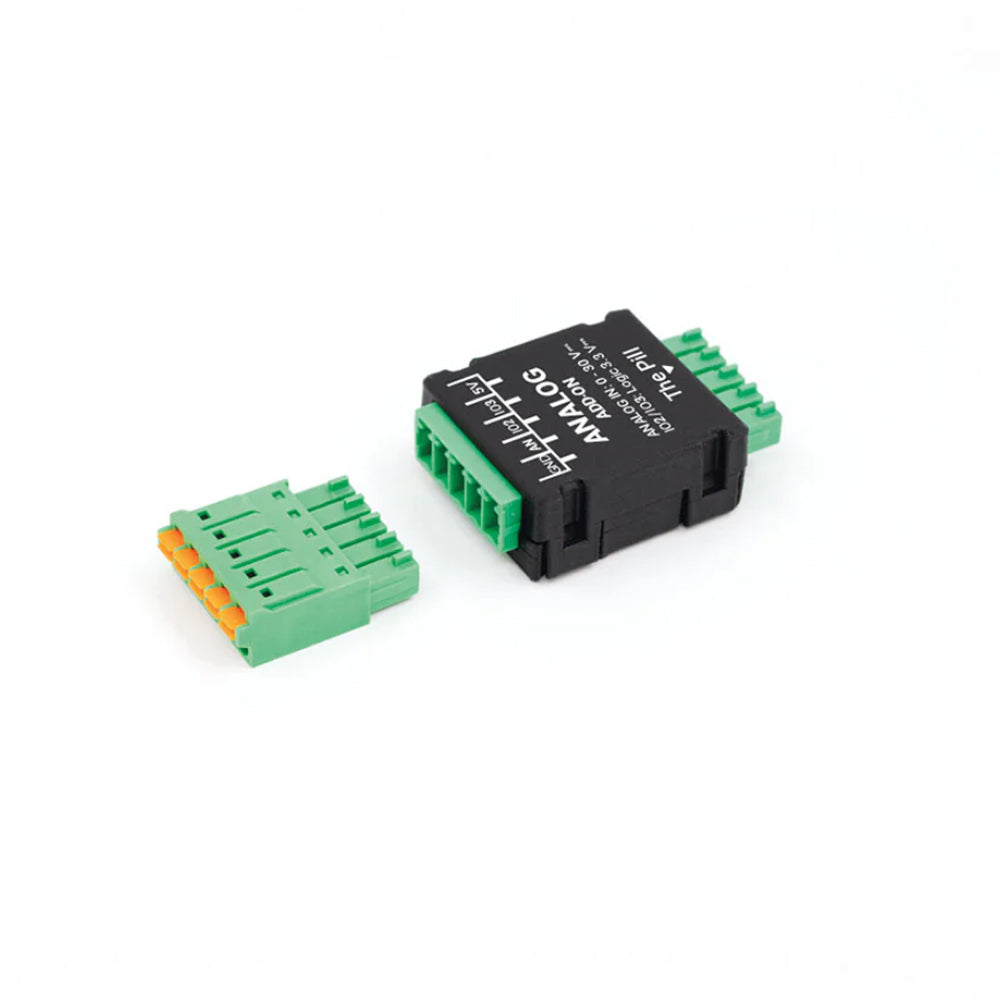

Analog 0-30 V Add-on for Shelly The Pill

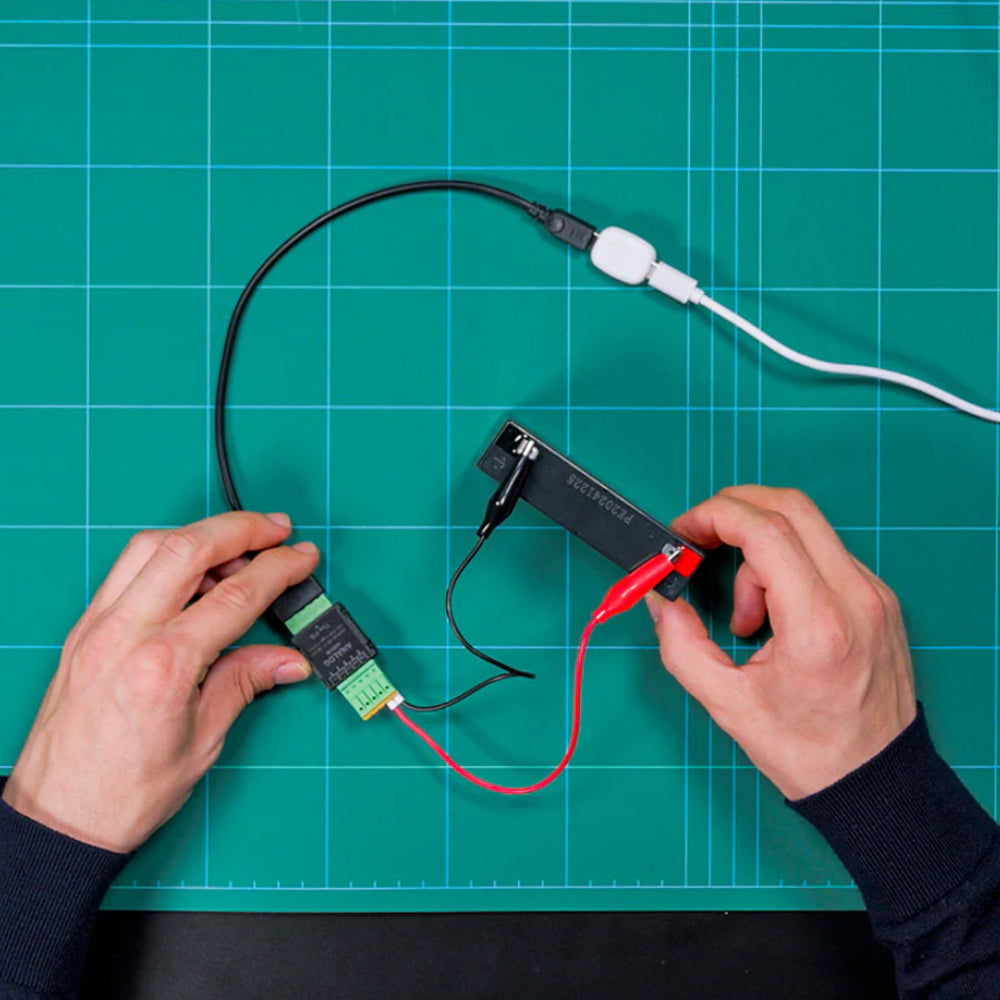

Add-on module for The Pill by Shelly that measures analog sensors and DC voltages up to 30 V. Ideal for monitoring batteries, power supplies, and other low-voltage devices.
*The Analog 0-30 V Add-on is sold separately and requires the 5-Terminal Add-on to connect with The Pill by Shelly.
Key Features
Measurement range: 0-30 V DC
Extends The Pill’s measurement range for sensors and batteries
Compatible via 5-Terminal Add-on

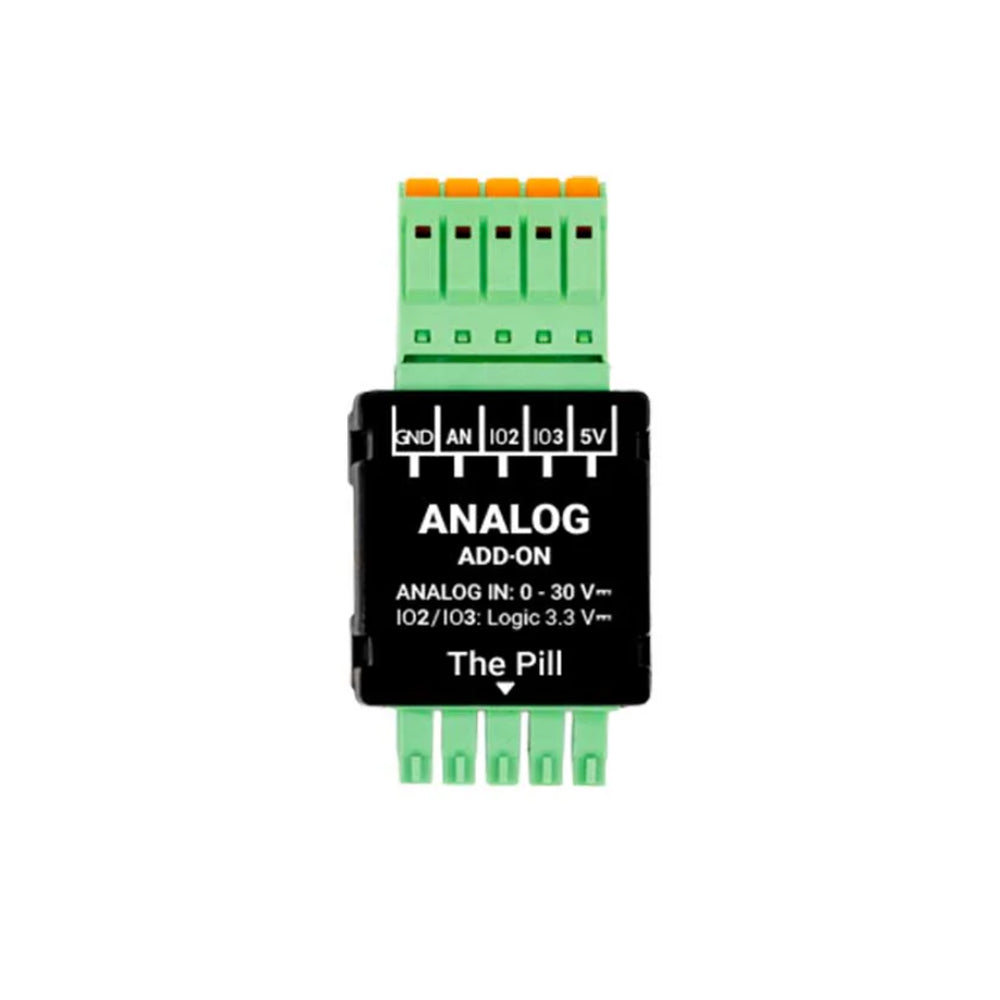

1 Analog Input (AN) + 2 configurable Digital IOs (3.3 V logic)
5 V power output for connected sensors
Specifications
Physical | |
Size (HxWxD): |
36.5 mm x 26.5 mm x 11.5 mm |
Weight: |
8 g |
Shell color: |
Black |
Environmental | |
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Sensors, meters | |
Voltmeter range (DC) |
0 V - 30 V |
Voltmeter accuracy: |
±(2% + 5d) |
Input circuits ratings | |
Digital inputs triggering voltage: |
Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V |
Digital inputs max. voltage |
3.3 V |
Output circuits ratings | |
Max. switching voltage: |
3.3 V (logic-level) |
Max. switching current: |
20 mA |
