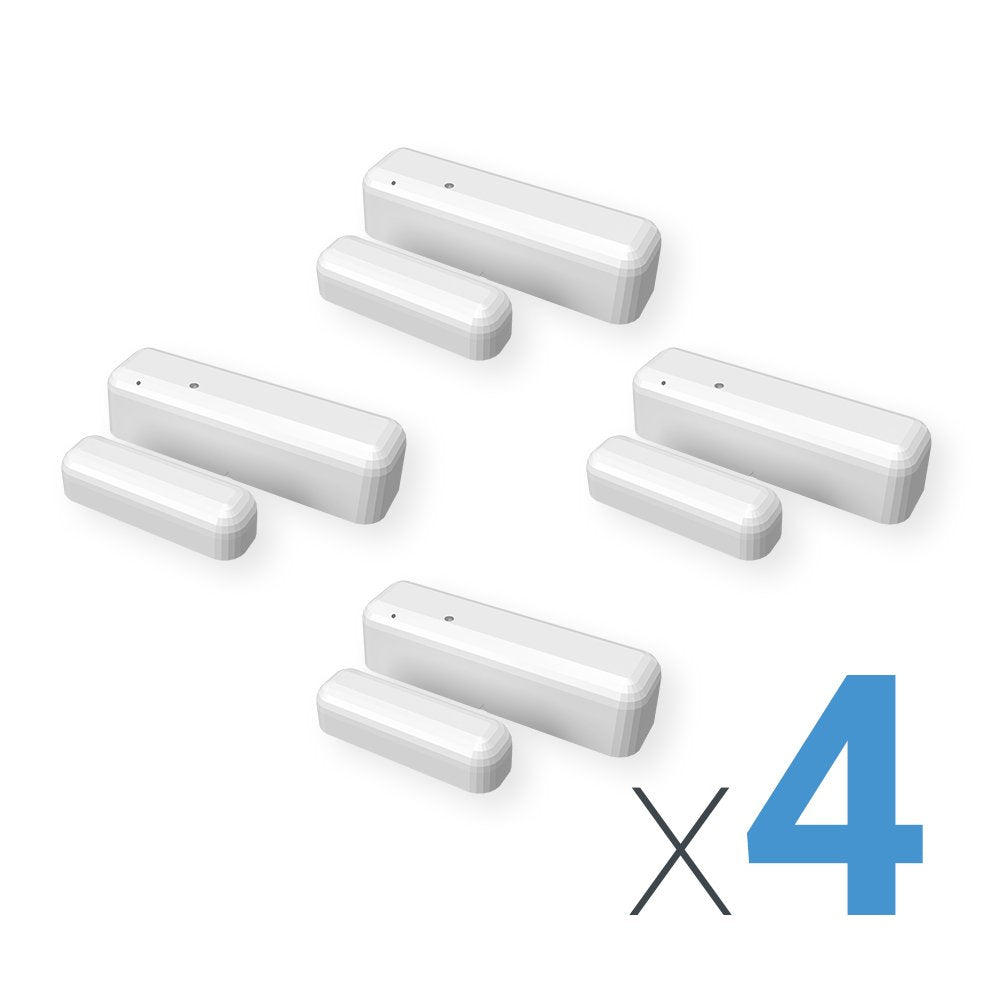

Shelly Door Window 2
WiFi-operated Door Window 2 sensor

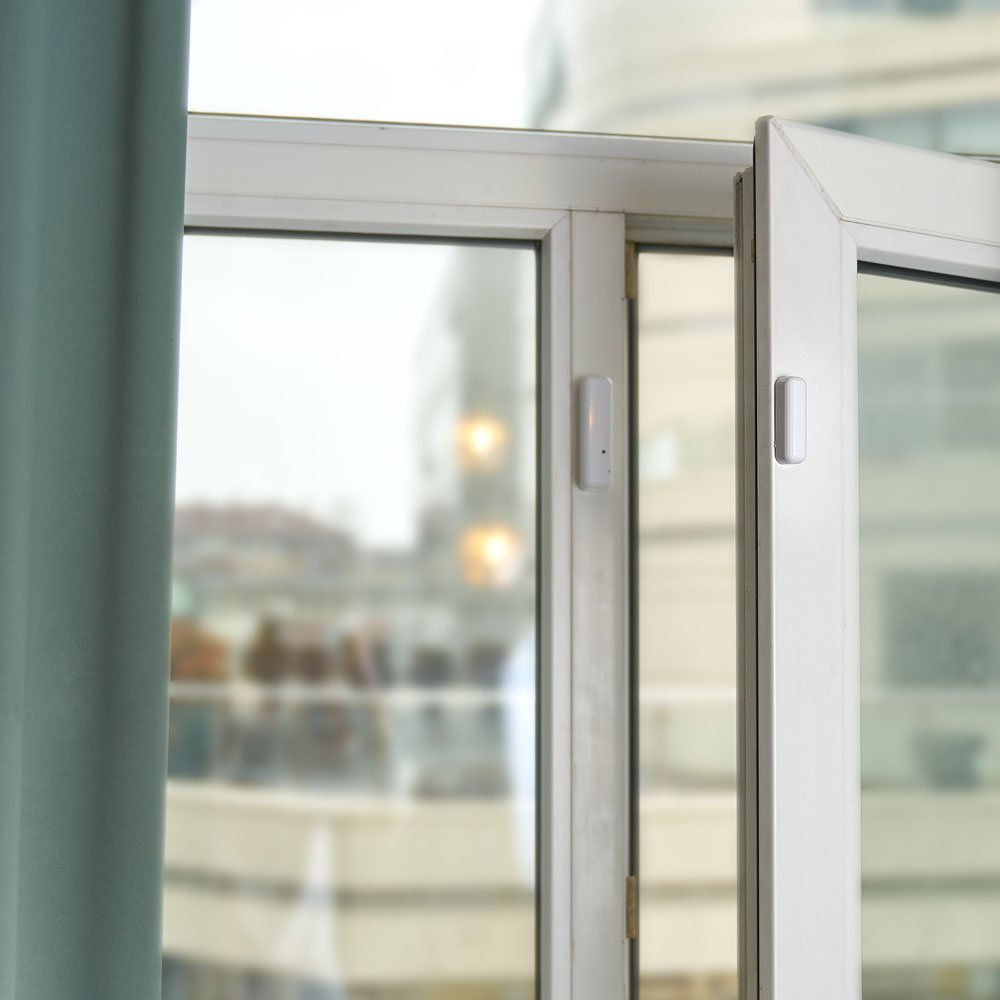

The Shelly door sensor detects and reports the opening and closing of door/windows, tilt angle, vibration, temperature and lux. The device uses 2 batteries type CR123A which are NOT included.
| Power | |
| Battery life | 18 months |
| Battery type | 2xCR123A <- ORDER HERE Use only non-rechargable batteries! |
| Power supply AC | No |
| Power supply DC | No |
| Special functions | |
| Illumination measurement | Yes |
| Motion detection | No |
| Open/Close | Yes |
| Tilt angle detection | Yes |
| Vibration detection | Yes |
| Water detection | No |
| Temperature measurement range | – 40°C ~ 60°C (± 1°C) |
| Features | |
| Operational temperature | -10ºC to +50ºC |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| Connectivity | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Dimensions | |
| Size | 82mm x 23mm x 20 mm, 52mm x 16mm x 13 mm |
The deviation from the device dimensions is up to 0.5 mm. The deviation from the package dimensions is up to 2 mm.
Warranty and Support:
Warranty inquiries and troubleshooting via the Shelly-Support-Ticketsystem
